Beechcraft King Air 350i Interior, Cockpit, Specifications, and Rate.Beechcraft King Air 350i is a twin turboprop organisation aircraft established by Hawker Beechcraft Firm (HBC). Beechcraft King Air 350i first flew in 1988 as well as was made in a civil as well as military variation. More than 500 King Air 350i have been shipped. The Beech King Air product has actually been created constantly considering that 1964 and more than 6,000 of the 17 variants have been cost business, business as well as unique mission procedures to greater than 94 countries.
In December 2006, Raytheon introduced the sale of Raytheon aircraft to GS Resources Allies. The brand-new company called Hawker Beechcraft Inc. as well as sales were finished in March 2007. In October 2008, Hawker Beechcraft introduced a brand-new King Air 350i that had a brand-new cabin inside that was upgraded with Rockwell Collins Location, an integrated cabin monitoring system (CMS), the new Beechcraft FlexCabin allows for less complicated setup of the cabin. Besides that the cabin noise degree has actually been decreased to an average of 78dBA.
The first King Air 350i trip is scheduled for very early 2009 with the Federal Aeronautics Management (FAA) qualification planned for the 3rd quarter of 2009 as well as shipments will begin quickly thereafter. The European Aeronautics Security Authority (EASA) qualification is anticipated in very early 2010.
Beechcraft King Air 350i Engine
The Beechcraft King Air 350i is powered by a Pratt & Whitney PT6A-60A twin turboprop engine, a free wind turbine engine, each rated at 1,050 shp. The Hartzell propeller is a four-blade propeller, 266.7 cm automated aluminum alloy, relatively easy to fix pitch propeller.
Aircraft bladder cells and also indispensable gas storage tanks on each wing supply useful fuel ability of 1,438 l. An additional gas tank located inside the engine nacelles brings the complete gas ability that can be used to 2,040 l.
Beechcraft King Air 350i Specifications
Beechcraft King Air 350i has various specs, depending on the variation as well as designation. The special King Air 350i goal version is readily available as a monitoring aircraft outfitted with a camera. The maritime patrol version can carrying as much as 1,300 kg of mission tools furnished with positive air and also sea search as well as infrared radars. Rescue settings up as well as rescue tools can be gone down via the hatch.

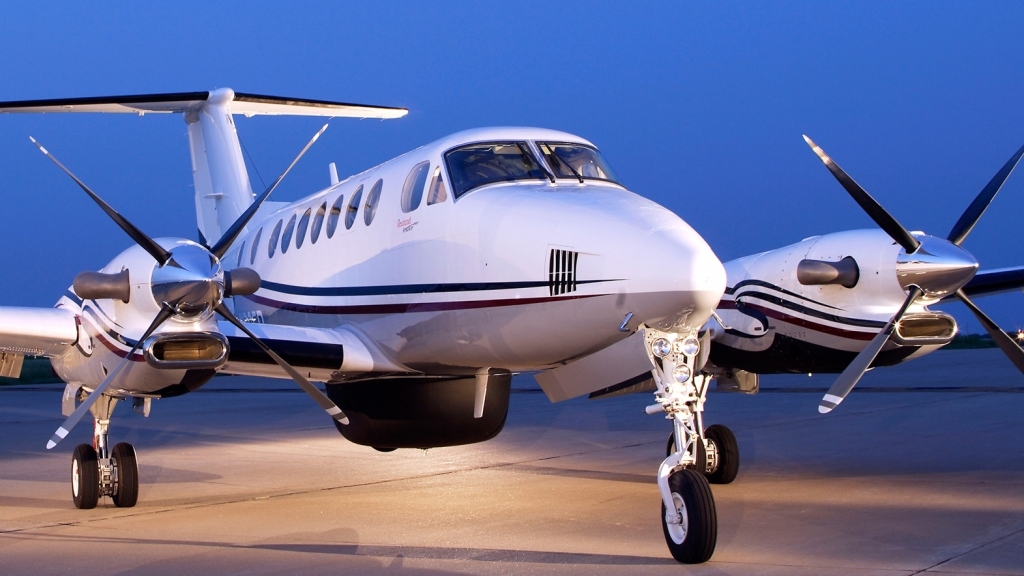

The hydraulically retractable tricycle landing gear has a double wheeled main system and also a one wheel wheeled nose system. The gear is outfitted with Goodrich tires, a hydraulically operated Goodrich multi-disc brake, and Beech oleo-pneumatic shock absorbers. The primary teeth draw ahead and also the nose device draws back.
The armed forces knowledge version of the Guardian RC-350 has the ability to roam the station for greater than 6 hrs at an altitude of 10,500 m. This airplane can keep track of radar emissions in the range of 20MHz to 18GHz and can obstruct communications in the 20MHz band to 1.4 GHz.
Aircraft goal tools includes Raytheon AN/ ALQ-142 digital support group with wing-mounted antenna, a Watkins Johnson 9195C type radio communication interceptor, Cubic safe electronic up-and-down data web link, Honeywell laser inertia navigating system and also decision system global setting. The interaction intelligence system antenna is installed in a fairing under the body.
The King Air 350i got in solution with the Japanese Self-Defense Forces in 1999 lugging the classification of JGSDF LR-2. This airplane is outfitted with a surveillance and also communication system.
The Royal Australian Air Force leas 7 King Air 350i airplane for navigator training and the Australian Army leas three airplane for command as well as control, communication assistance, and also guidance.
Raytheon has actually created a brand-new unique long-range objective variant, the King Air 350ER. The airplane has an extra nacelle gas container, hefty touchdown gear and also maximum departure weight raised to 7,480 kg (16,500 pound). This gives the airplane an extended series of 4,260 kilometres (2,300 nm) and an endurance of 8 hours. King Air 350ER obtained accreditation in November 2007.
Beechcraft King Air 350i Cabin and Avionics
The Beechcraft King Air 350i cabin can fit two team and is furnished with twin controls although it can be flown by a single pilot. The aircraft is geared up with Rockwell Collins ProLine II avionics suite with UNS-1D/ UNS-1K Universal navigating system, ALT-80A altimeter, double air speed indication and also flight director and optional Rockwell Collins EFIS-8B digital flight info system with 3 multifunctional tube display screens.
The King Air 350i is currently used with Rockwell Collins Pro Line 21 collection avionics as conventional tools. This consists of the 8in × 10in main flight display screen based upon the technology of LCD energetic fluid (liquid crystal display) and multi-functional display screen with main engine information, system synoptic, checklist and also navigating information including preparing maps, existing placement maps as well as blog posts. Surface, web traffic, lightning, weather condition radar, and also other sensing unit info can likewise be presented.
Pro Line 21 includes: FMS-3000 trip administration system (Twin FMS is optional), several flight director, failed-passive auto-pilot, Global Positioning System (GPS), double solid-state mindset heading reference system (AHRS), dual digital air computer system information and disturbance detection radar. The Rockwell Collins (RTU) remote radio tuning device gives streamlined control of Pro Line 21 radio tuning. And the AirCell ST3100 Itridium satellite telecommunications system will certainly be the basic devices for brand-new airplane.
Beechcraft King Air 350i Cabin and Interior
Beechcraft King Air 350i has a comfy as well as spacious quadrate-oval pressurized cabin. The air-conditioned cabin is equipped with double club design seats for 8 travelers plus up to 3 single seats.
The Ultra Electronics UltraQuiet energetic noise control system lowers trip noise to listed below 80dB (A) in the passenger cabin. The acoustically energetic UltraQuiet system terminates propeller sound in the cabin by presenting sound waves that have the same frequency and amplitude but have contrary stages of undesirable sound.
Beechcraft King Air 350i Cost and also Orders
The price of the most recent Beechcraft King Air 350i is US $ 7.3 Million. In March 2007, the Iraqi Federal government bought 5 unique King Air 350ER mission aircraft for intelligence, surveillance and also reconnaissance, and also one for transport. The overall needs are for 24 unique missions and also 24 transportation aircrafts. Unique objective airplane must be equipped with Wescam MX-15 L3 electro-optical/ infrared system, General Atomics Lynx synthetic aperture radar/ reverse synthetic aperture radar (SAR/ ISAR), AN/ AAR-47 as well as AN/ ALE countermeasure rocket warning systems -47. In November 2008, the US Air Force bought 23 King Air 350ERs for shipments beginning in 2009.
