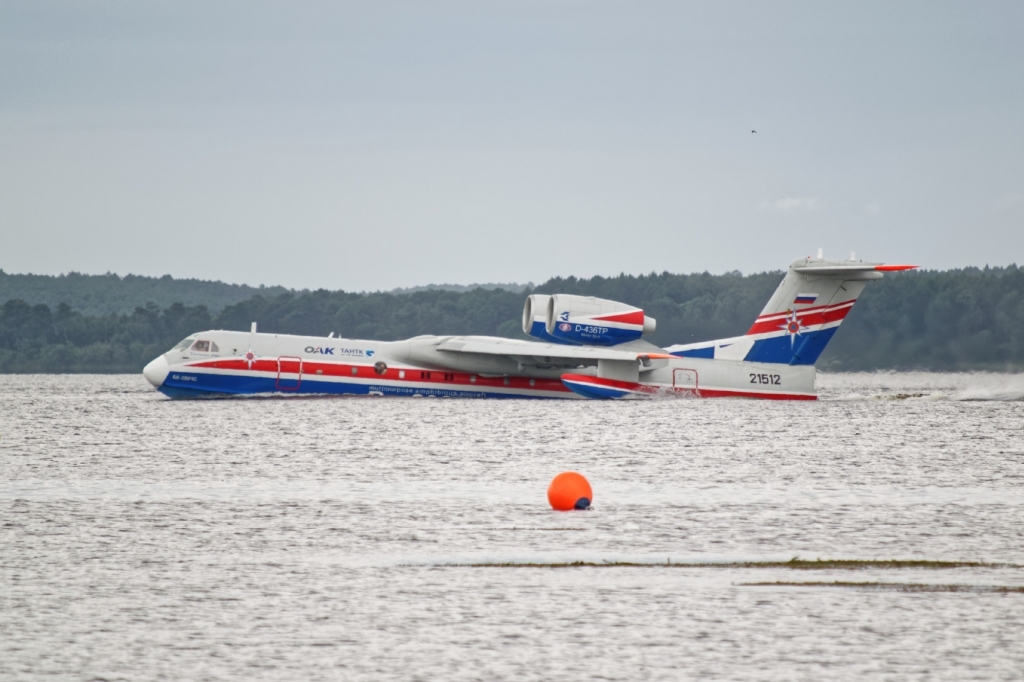

Beriev Be-200 Inside, Cabin, Specs, and Rate.The Beriev Be-200 is a twin turbofan multi-role aquatic airplane generated by Berieva Aviatsionnyi Kompaniya (Beriev Aeronautics Business), with the Russian Irkutsk Airplane Production Organization (IAPO). The aircraft was created under a collaborative program that consisted of major aeronautics industry companies such as Beriev Airplane, Jet, EADS-Irkut Seaplane (EISP) as well as EADS. The Be-200 examination aircraft completed its maiden flight in September 1998. On the other hand the Be-200ES very first production airplane made its initial flight in June 2003.

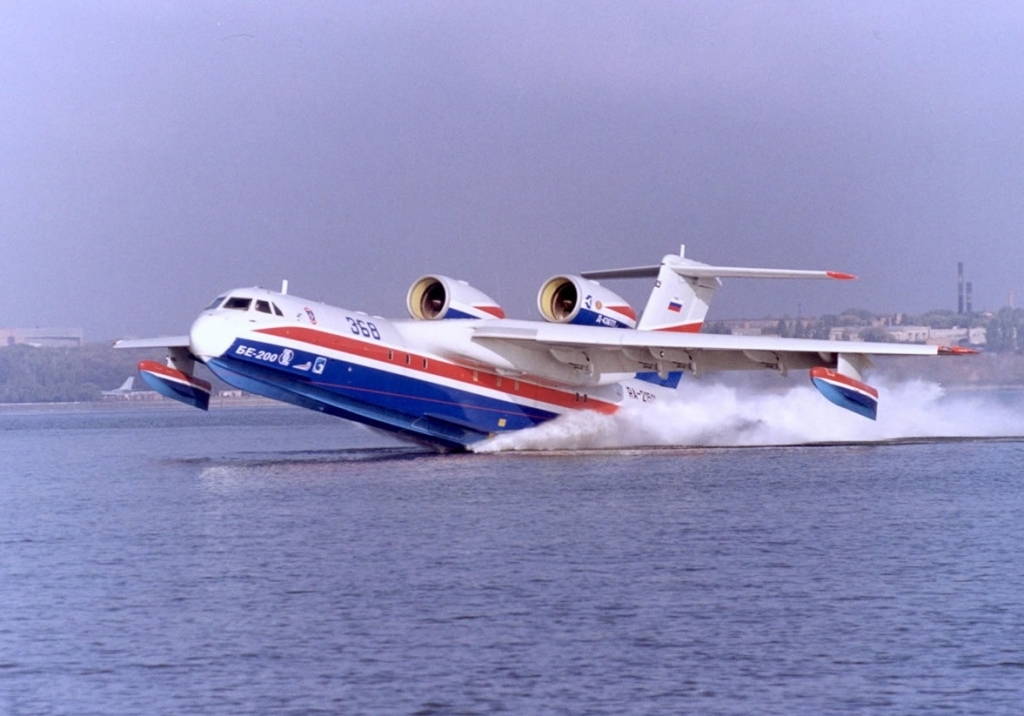

The Be-200 airplane can be configured to perform numerous procedures, including fire combating, search and also rescue, sea patrol as well as environmental monitoring, freight as well as passenger transport procedures. It can take off as well as arrive at water as well as on runways that are not prepared.
Beriev Be-200 Cabin and Avionics
The Be-200 aquatic aircraft is geared up with a partial glass cabin. The cockpit is equipped with a digital flight control system (fly-by-wire) and a modern navigating system, consisting of satellite navigating (GENERAL PRACTITIONER), trip monitoring system (FMS), autopilot and also climate radar. The flight control system, integrated with an aerodynamic layout, offers high ability to move at reduced speeds in addition to better handling and also security capacities, and also reduces pilot workload.
The Be-200 airplane is outfitted with a full avionics circuit for all weather condition requirements. The avionics incorporated all-weather ARIA 200-M system presents 6 152 mm × 203 mm (6in × 8in) LCDs and also an Electronic Trip as well as Information System (EFIS) to display all flight details to pilots. This system was created by Honeywell along with the Moscow Research Study Institute for Airplane Equipment.
Beriev Be-200 Engine and also Efficiency
The Be-200 amphibious aircraft is powered by two Progression D-436TP ZMKB turbofans and also a TA 12-60 complementary power unit. Each engine can producing an outcome power of 73.6 kN. The device was established by the Progress Layout Bureau as well as created by the Motorsich factory in Zaporozhye.
The D-436TP turbofan engines generate greater efficiency in warm as well as high conditions contrasted to turboprop engines placed on comparable fire engines. The engine has actually been established with advanced products and also ingenious solutions that are outfitted with an engine control system, and an engine resonance tracking system.
Be-200 aircraft can fly with a maximum speed of 680 km/ h with a series of 3,300 kilometres and also a solution ceiling of 8,000 m. The aircraft can ride at speeds of 3,350 ft per minute. The maximum liftoff weight of Be-200 on the path is 41,000 kg and also in water is 37,900 kg.
Beriev Be-200 Specs

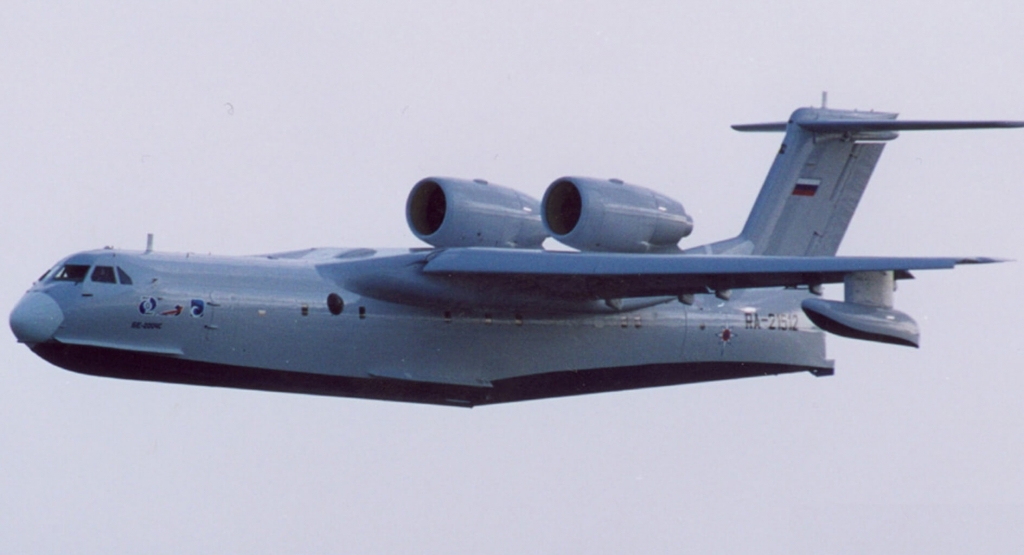

The style of the Be-200 fuselage is a high-wing T-tail monoplane with a one-step style hull that can provide security in water. The body is made of aluminum alloy and covered with rust protection product. On the whole, the Be-200 aircraft has a size of 31.43 m, an elevation of 8.9 m, and a wingspan of 32.78 m.
Developed as a multirole aquatic platform, the Be-200 can be configured for numerous goals. Be-200 has significant maritime attributes for performing seaside and also blue waters operations. The aircraft gives flight attributes similar to standard aircraft.

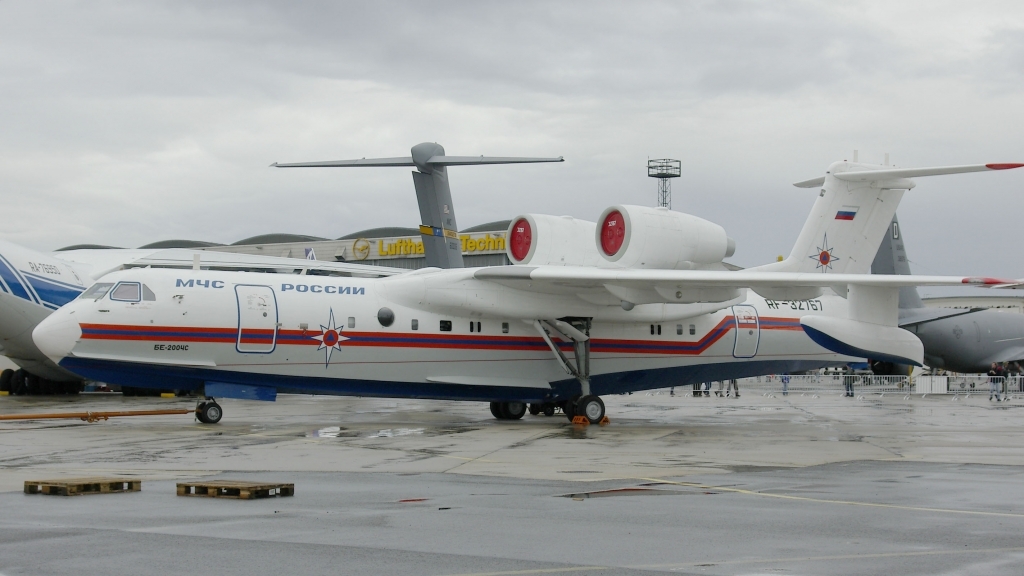

In regards to the touchdown mechanism, the Be-200 airplane is outfitted with a hydraulic retractable touchdown system. Each device has two wheels besides water steering, which gives steering in water. Underwing stabilizers installed on the wings give stability in water.
Beriev Be-200 Variant
The Be-200 aquatic airplane has numerous versions adapted to the goal consisting of fireman, search and also rescue, cargo ships, traveler aircraft and ambulances. Fire combating variations have a team of two members, and are equipped with fire and water tanks. The aircraft can drop 12,000 litres of water in the fire area without refueling.
Look and also rescue (SAR) variations can run within an area of 200 miles for 6.5 hours. The aircraft is equipped with blow up rubber rowboat, thermal imaging, as well as optical search help and also emergency treatment packages. The SAR version can be configured to lug 45 guests.
The cargo transportation variation is equipped with freight handling tools installed on the flooring to deliver loose cargo, as well as freight packed in standard containers and pallets. This aircraft has a haul ability of as much as 7,500 kg.
Guest versions, marked as Be-210, can carry 72 travelers. It has an optimal range of 1,850 km. Meanwhile, the Be-200 rescue variant can fit 10 clinical staff in addition to 30 individuals who were injured with cots. This airplane is geared up with emergency situation diagnostics as well as extensive treatment facilities.
Beriev Be-200 Cabin and also Interior
The Be-200 cabin can be set up in a passenger, thing, or mixed design (products and passengers). Guest cabs can be set up with approximately 66 tourist class seats or in between 10 as well as 32 fabulous as well as organisation seats. The cabin interior is offered by OBJECTIVE Air travel (Fliteform) Ltd, from Alfreton, Derbyshire from England.
In cargo setup, this aircraft has an ability of as much as 7,500 kg of cargo. In a blended guest/ cargo setup, 19 travelers and as much as 3,000 kg of cargo can be transported. The cabin is furnished with a freight door that has a height of 1.70 m and a size of 2.00 m, making it simple to accessibility for big tons. The cabin can stand up to nine shipping containers.
Beriev Be-200 Rate and also Orders
The rate of the most up to date Beriev Be-200 amphibious airplane is around US $ 45 to 70 million according to the requirements gotten. The Russian Ministry of Emergency Circumstances (Emercom) was the first client to obtain an aircraft in July 2003 based on 7 Be-200 fire and rescue orders. The Ministry of Emergencies, Azerbaijan, obtained the delivery of a Be-200ES airplane in 2008.
The Russian Navy plans to buy four Be-200 airplane for reconnaissance as well as search and rescue projects, with deliveries set up between 2010 as well as 2013. The Navy of individuals’s Freedom Army (PLAN) China is also in conversations with Russia to get maritime search and rescue variants.
