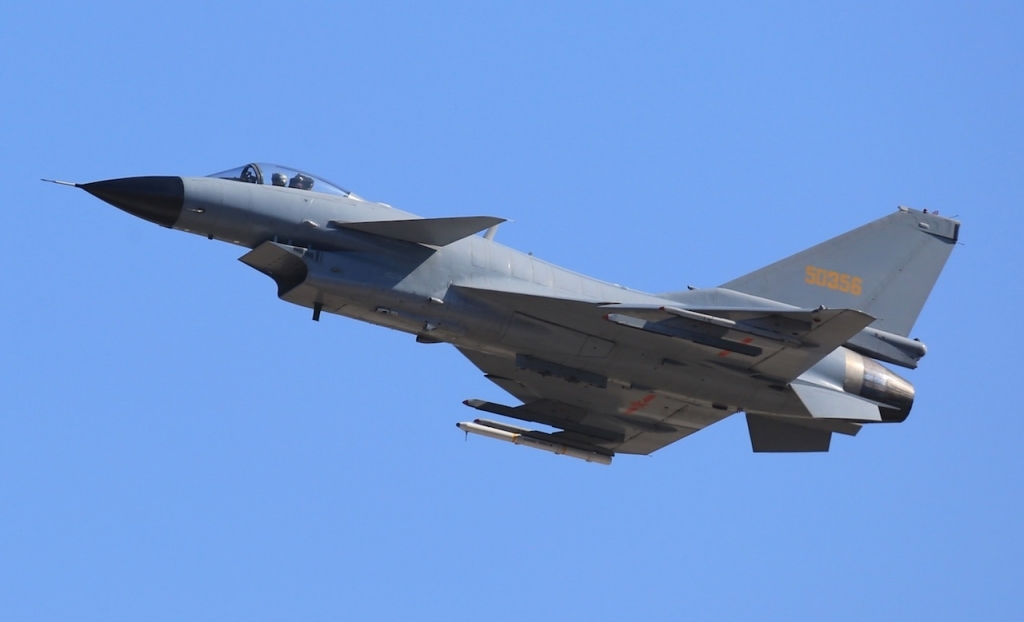

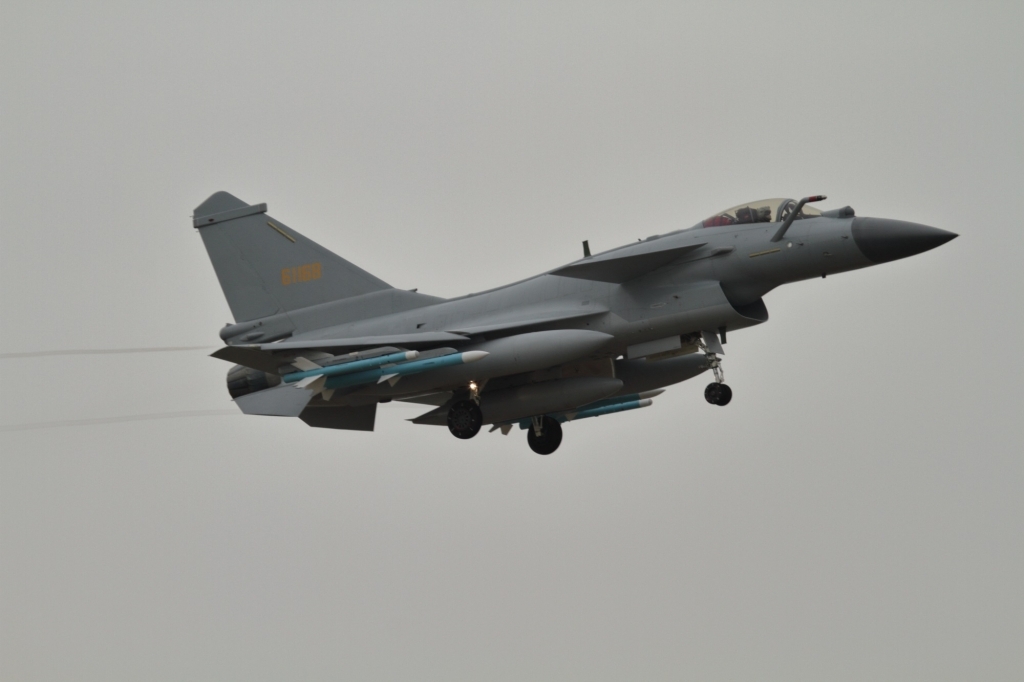

Chengdu J-10 Fighter Jet Rate, Specifications, and Cabin.The Chengdu J-10 is a 4th generation multirole fighter aircraft created by the Chengdu Airplane Sector Group (CAIG), part of the China Aviation Sector Company I (AVIC I). In the West, the J-10 aircraft is referred to as the Strong Dragon. The J-10 airplane were generated for the Chinese Individuals’s Freedom Army (PLA) including the army, navy, flying force, as well as critical rocket pressures. The J-10 boxer is a replacement for the J-7 and Q-5 which is presently still operated by the Flying force (AFPLA).

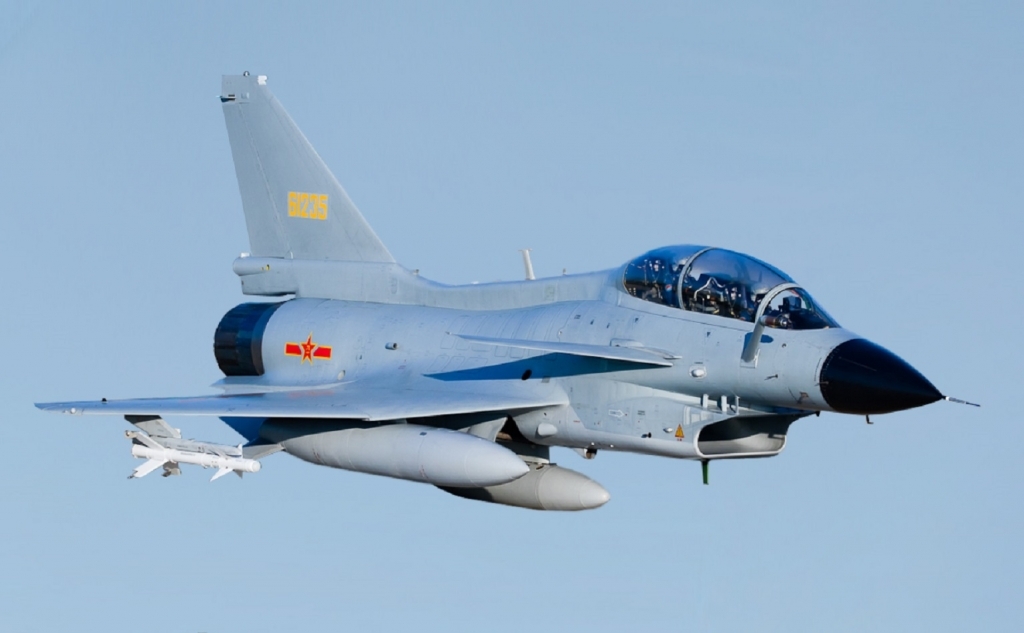

The first flight of the Chengdu J-10 one-seat variant was executed in 1998, while the two-seat variation made its initial trip in 2003. The Chinese federal government formally announced the J-10 in February 2007. The first initial fourth-generation J-10 airplane was introduced by flying force in April 2010.
Chengdu J-10 Weapons
The Chengdu J-10 has 11 outside difficult factors: 5 difficult points on the fuselage with one in the center line and also a set of hard lines on each side of the fuselage, and also 3 tough factors on each wing. J-10 warplanes can be equipped with air-to-air rockets such as Python 3 PL-8, P-11 or PL-12, laser directed bombs, YJ-8K or C-801K anti-ship rocket missiles, C-801K, C ground strike -802 as well as anti-ship turbojet-powered missiles produced by CHETA, YJ-9 anti-radiation missiles, and 23 mm cannons.
The PL-8 infrared short-range air-to-air rocket is manufactured in China under a manufacturing arrangement certified by the Chinese Academy (previously the Luoyang Electronic Optical Modern Technology Development Center) as well as is a version of Israel’s Python 3 rocket. The PL-11 is a licensed manufactured variant of the medium-range Italian Aspide MBDA air-to-air projectile.
PL-12 missiles are produced in China under a cooperation arrangement with Russia. It utilizes Russian AA-12 Russian Adder projectile innovation that is configured with a rocket motor created by China to give a variety of 50 miles as well as Mach 4 rates.
Chengdu J-10 Engine
The Chengdu J-10 boxer is powered by an AL-31 turbojet engine provided by Saturn Lyulka. The very first prototype and collection airplane from manufacturing aircraft were outfitted with AL-31FN which established 79 kN and also 123 kN with afterburn, and also which are currently made use of in Chinese Su-27 as well as Su-30 Air Force airplane.
An extra powerful and sophisticated J-10 version, the Super J-10 is outfitted with AL-31FN M1 provided by Saturn Lyulka. The AL-31FN M1 supplies 132.5 kN and is outfitted with a full authority digital engine control and four-way rotary exhaust nozzle for vector drive.
The maximum speed of a Chengdu J-10 competitor is 2,327 kilometres/ h at elevation. Its maximum speed at sea degree is 1,470 km/ hour. The aircraft’s range and also combat spans are 1,850 km as well as 550 km, respectively. The solution ceiling is 18,000 m. The aircraft considers around 9,750 kg and has a maximum liftoff weight of 19,277 kg.
Chengdu J-10 Specs

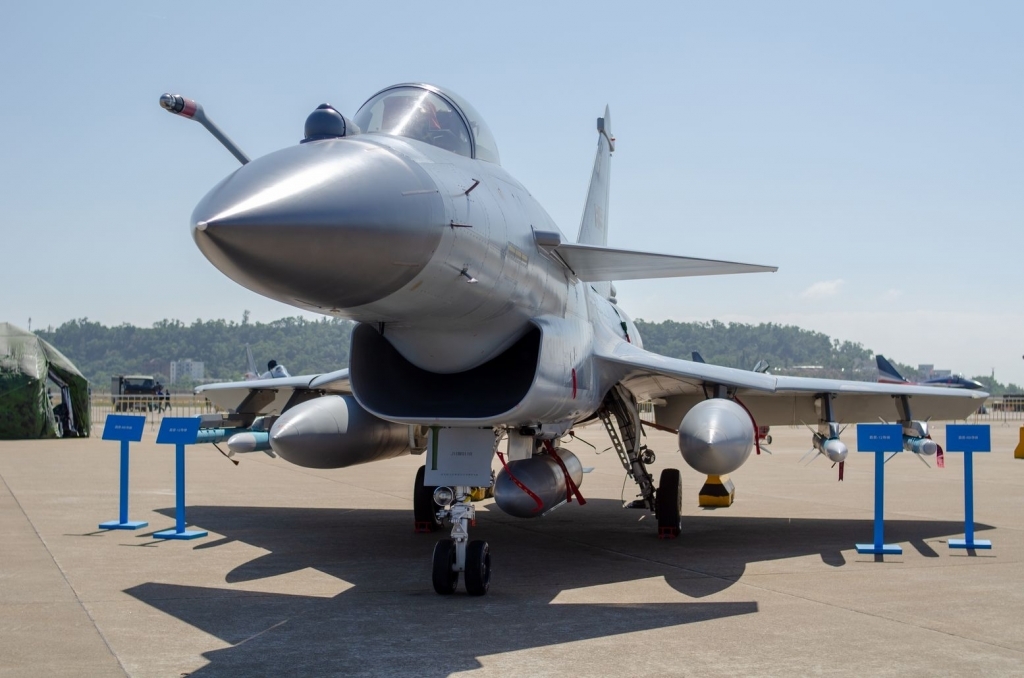

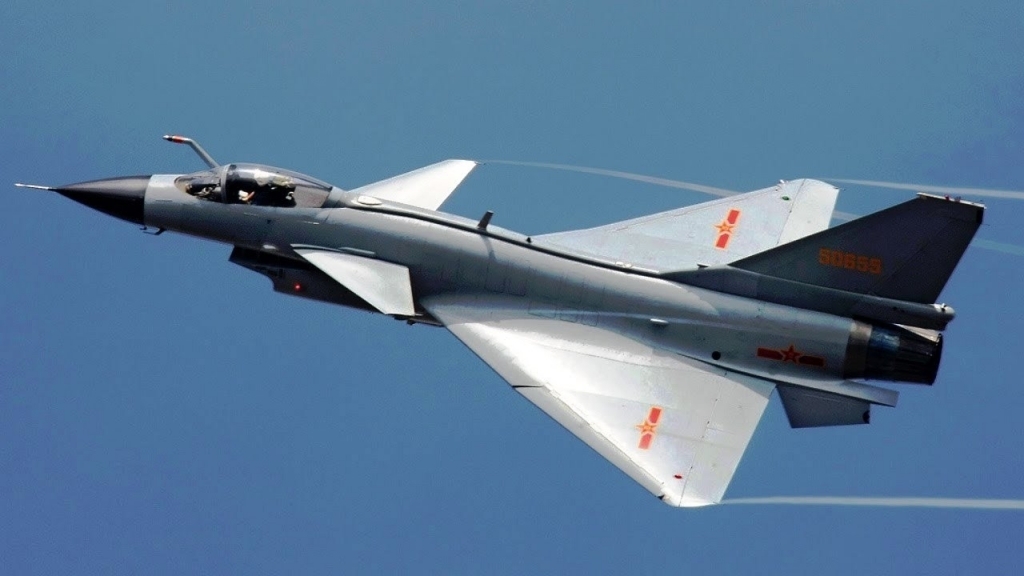

The framework of the Chengdu J-10 competitor is based on a tail-less delta (triangular planform) wing, foreplanes and vertical tail sweptback. There are two set forward fins that tilt outside (at the bottom of the body) near the tail. The size and design of the J-10 is really similar to the Israeli Aircraft Industries Lavi fighter, while the modern technology is very similar to the technology of the USAF F-16 airplane.
The J-10 fighter is outfitted with a tricycle-type touchdown gear. The nose unit has twin heels as well as draws back and the main unit draws forward. This aircraft has a parachute for touchdown.
The Chengdu J-10 can carry an optimum of 4,950 liters of inner fuel, including 3,180 litres in the wing container and also 1,770 liters in the body container. The fixed refueling probe for refueling in the aircraft is placed halfway to the front side of the aircraft port and also directly before the pilot. The J-10 air refill originated from the Xian H-6U vessel. Extra fuel can be brought in complementary tanks in the midline listed below the body as well as in the inmost pairs of 3 sets of wing hooks.
Chengdu J-10 Sensor
The J-10 boxer is equipped with a forward looking laser and also infrared target vessel. China Aviation Industry Corporation I (AVIC I) has actually displayed a J-10 exhibit design furnished with a targeting shell, which will supply the J-10’s ability to make use of weapons led by laser and also satellite navigating.
Feasible pulse Doppler radars consist of China Kind 1473 radar, Phazotron Zhuk-10PD or Russian Zhemchug, JL-10A China, IAI Elta EL/ M-2023 Israel or Galileo Avionica Grifo 2000 Italy.
Chengdu J-10 Cabin and also Avionics
The Chengdu J-10 cabin is furnished with a zero-zero ejection seat. The competitor has an electronic fly-by-wire flight control system and HOTAS (hand-on throttle and stick) control where the pilot has every control for fight that is taken into 2 takes care of.
The cabin screen includes the view of a weapon mounted on a safety helmet, a wide head watching area and also one complete color display and 2 monochrome fluid crystal multifunction displays. Avionics is served by databus 1553B.
Chengdu J-10 Rate and Orders
The rate of the most up to date Chengdu J-10 boxer jet is United States $ 41 Million. 4 J-10 fighter jets are shown by the 24th AFPLA combat department. Pakistan will certainly receive the very first export variation of the J-10, approximately 36 aircraft, in 2015. China and also Pakistan have actually worked closely in the advancement of other competitor aircraft, the light boxer JF-17 or FC-1.
