Cirrus SR20 Interior, Cabin Specifications, as well as Price.Cirrus SR20 is a lightweight piston-engined passenger airplane made by Cirrus Design Company (CDC), United States. This aircraft can be made use of for personal, company as well as pilot training. The Cirrus SR20 airplane was accredited by the Federal Air Travel Administration (FAA) in October 1998 and came to be the initial of its kind to get a European Aviation Company (EASA) certificate in June 2004. At present greater than 6,000 SR20 airplane have been running in a variety of services.
Cirrus SR20 airplane are readily available in 3 SR20S, SR20GS as well as SR20GTS versions. SR20S and also SR20GS come in a solitary exterior color, a white base shade. SR20GTS is available in three outside shades, specifically white, dark red, and iridium. VarianS has a complete weight of 2,093 pound, while the GS and GTS variations have a weight of 2,144 lb and 2,167 pound specifically. Strip bundles for SR20S as well as SR20GS are “Toreador” and also “Red Sunset” specifically while the interior is constructed from slate fabric for both variations. At the same time, the strip package for the SR20GTS version is “Garnet” and also the inside is constructed from slate natural leather.
The SR20GS and SR20GTS variants can be customized for X version. X Edition attributes premium exterior and also interior, consisting of adjustable interiors. In a common SR20 X edition, the instrument panel and also center console are covered with carbon fiber and light weight aluminum which are machined. The cabin is covered with leather with particularly stitched accents and comfy chairs made from Alcantara.
Cirrus SR20 Engine and also Performance
The Cirrus SR20 airplane is powered by a Continental Lycoming IO-390-C3B6 piston engine. The engine has six cyndrical tubes fueled by a flexible exhaust system. The engine creates 215 hp of power to drive the three-bladed Hartzell prop.
Cirrus SR20 aircraft can fly at speeds up to 155 KTAS (287 kilometres/ h) with 75% power. The stand speed of the aircraft is an adjusted air speed of 60 KCAS (104 kilometres/ h) with a flap. While still in the air, it can increase to a range of 785 nm with a 55% power reserve. The aircraft calls for a 260 m landing ground as well as 450 m launch range. The aircraft can run approximately a ceiling of 17,500 feet (5,334 m) as well as has a climbing up price of 3.97 m/ sec.
Cirrus SR20 Specs

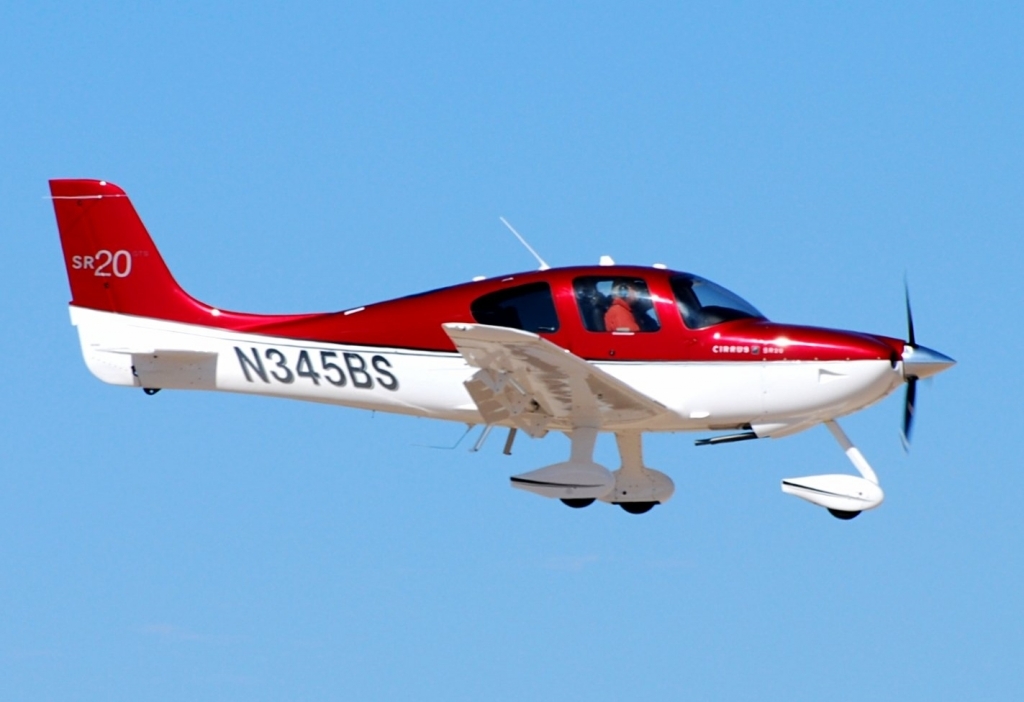

The Cirrus SR20 airframe has a low-wing monoplane layout. The airplane touchdown system consists of a tricycle type non-retractable touchdown gear wheel. On the whole the measurements of the Cirrus SR20 include a length of 7.92 m, a height of 2.71 m, as well as a wingspan of 11.68 m. This aircraft is designed to lug an optimum gross weight of 1,386 kg as well as has a common empty weight of 945 kg, a helpful lots of 441 kg, usable gas ability of 56 gal/ 336 lb (212 l/ 153 kg) and a complete fuel tons of 288 kg.
The Cirrus SR20 aircraft consists of a ballistic parachute system as well as four-point safety belt with built-in air bags for pilots and also co-pilots. The parachute system, called the Cirrus Airframe Parachute System (CAPS), is a 17 m motorized rocket parachute created by BRS. The parachute can be activated by drawing its overhead handle in an emergency situation to reduce the whole airplane securely to land.
Cirrus SR20 Cabin and Inside

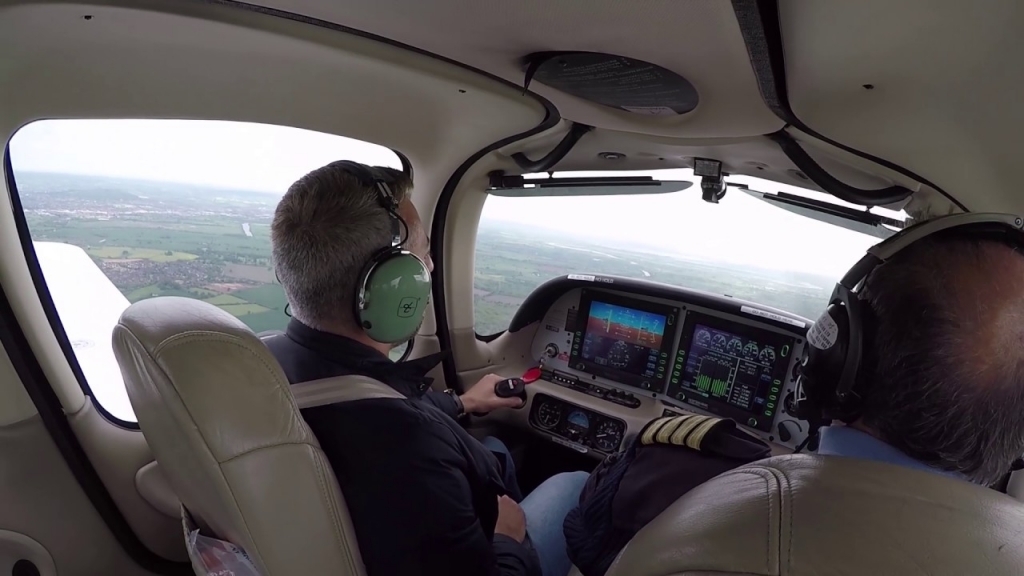

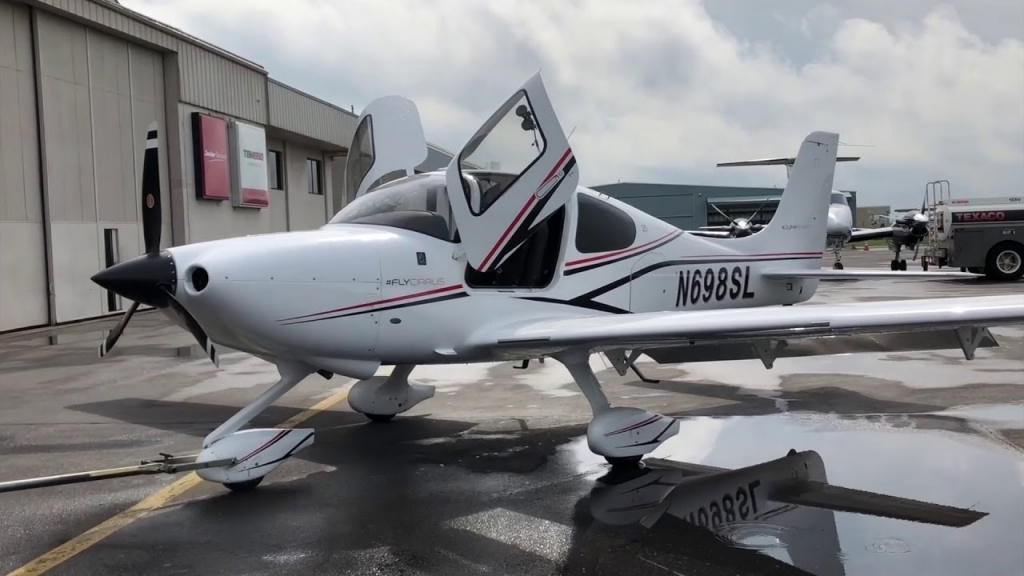

Cirrus SR20 aircraft has a sizable cabin that can suit 4 travelers, consisting of pilots and co-pilots. The cabin has a size of 49 in (124 centimeters) and also an elevation of 50 in (127 cm). There are large doors on each side of the cabin that provide simple entry as well as exit of passengers right into the cabin. The cabin interior includes chairs made from top quality as well as durable products. Unique front seats are geared up with air bag seat belts. The cabin is also equipped with UV Safeguarded Windows to stop straight UV radiation and rise guest exposure.

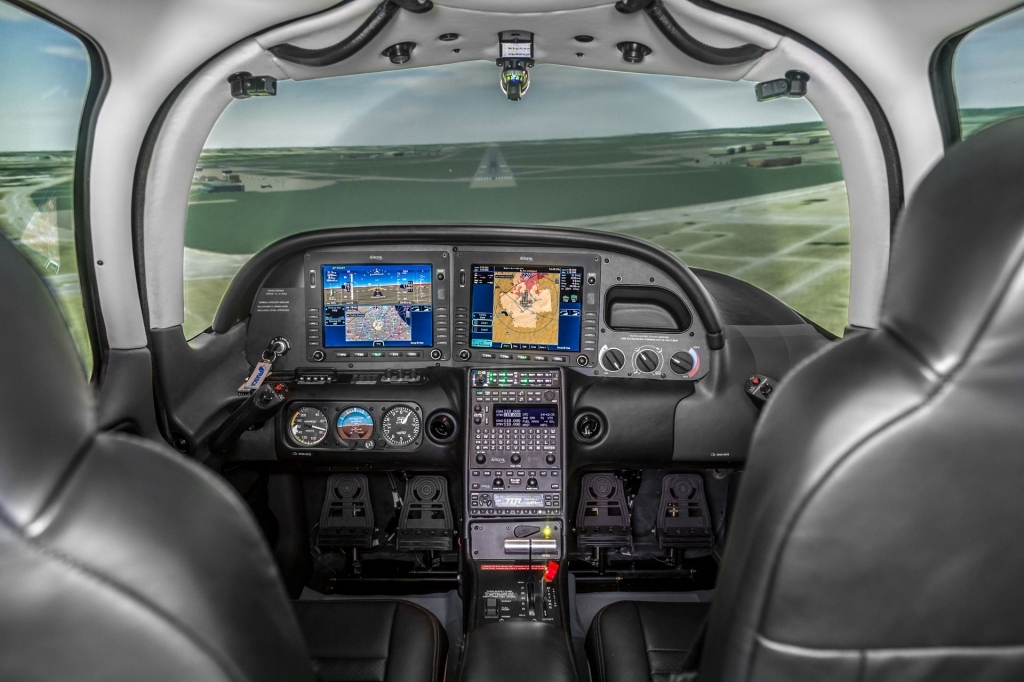

Cirrus SR20 Cockpit and also Avionics

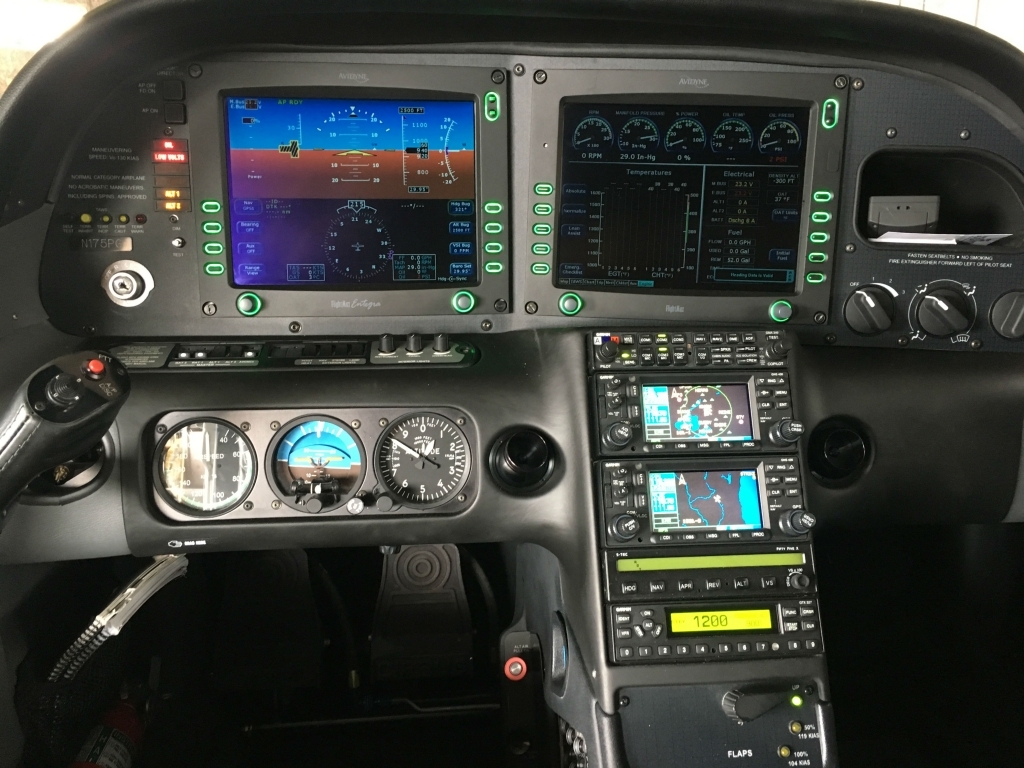

Presently, the Cirrus SR20 cabin is fully integrated with the electronic avionics suite called the Garmin Cirrus Viewpoint. This avionics collection consists of key-board controllers, 12 in twin screens (PFD as well as MFD), double interaction/ navigating/ WAAS GPS, engine and fuel monitoring system, flite graphics, S-tech 55 X autopilot, S-transponder setting, 406MHz ELT, GFC 700 auto-pilot/ dual AHRS, EVS point of view as well as chart display screen.
Various other avionics attributes on the Cirrus SR20 consist of weather info in trip and web traffic details such as TCAS. All crucial climate info including next-generation radars, METAR, TAF, AIRMET (airmen’s meteorological info), SIGMET (considerable atmospheric info), TFR (surface tracking radar), high winds, freezing as well as lightning degrees are supplied through XM climate links information. Stormscope WX-500 makes it possible for discovery of every kind of lightning including ground-based strikes and also cloud-to-cloud strikes.
This aircraft is additionally furnished with artificial vision innovation that offers a three-dimensional look from the outside. Any surface cautions, barriers, traffic, flight path pens, zero pitch lines, runways, airport indicators, as well as “highway support” or lane assistance can be quickly determined with making use of artificial vision technology.
Cirrus SR20 Cost as well as Orders
The price of the most recent Cirrus SR20 airplane is around US $ 474,900. In January 2006, four new Cirrus SR20 airplane were sent out to UND Aerospace, which were made use of for student training. In January 2011, Purdue University’s Aeronautics Innovation Division purchased 16 Cirrus SR20 aircraft to perform the training program.
