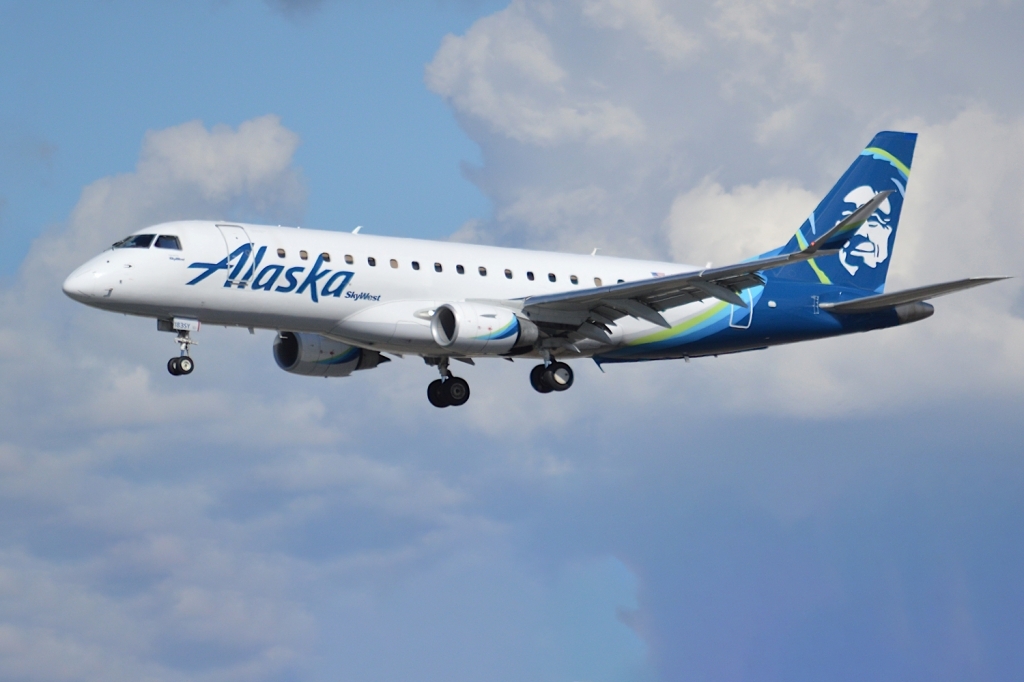

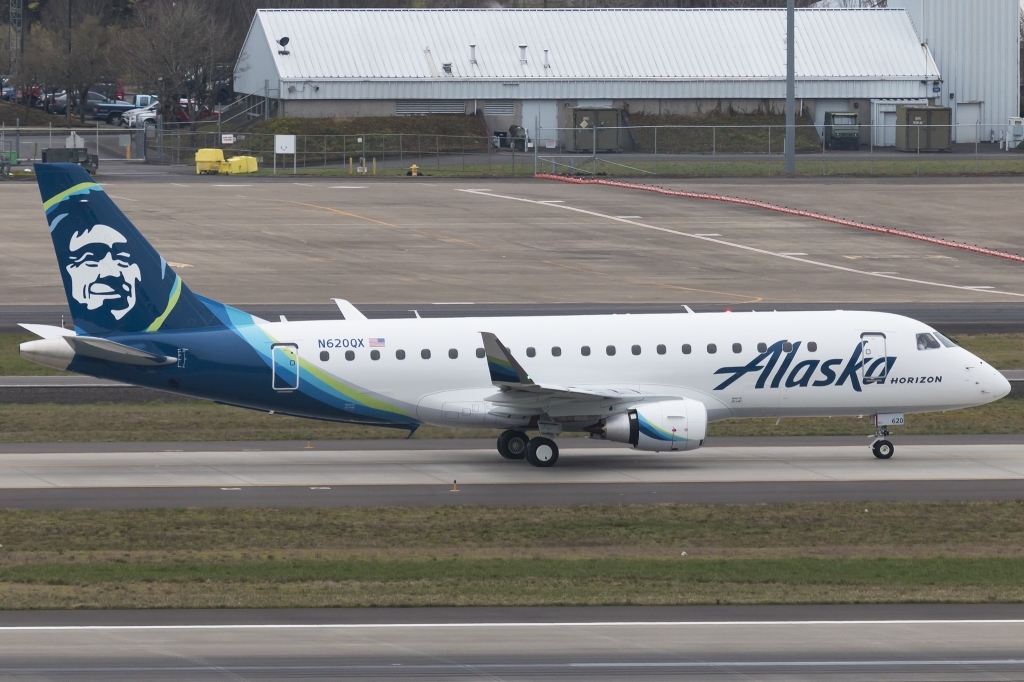

Embraer E175 Cockpit, Specifications, Interior, and also Rate.The Embraer E175 is a business aircraft with a capacity of 78 guests coming from the E-Jet family generated by Embraer, Brazil. The E175 made its inaugural trip in June 2003 as well as has since gotten kind certification for aircraft from a number of aviation authorities in Brazil, Europe as well as the US The airplane entered service with Air Canada in July 2005 and also the Federal Aeronautics Management (FAA) Accreditation was gotten in September 2006.
Embraer presently produces E175 airplane in 3 versions, particularly basic (STD), long variety (LR) and advanced variety (AR). The AR variation was introduced in 2007. It supplies greater protection and also tons capacity, which is generated from architectural reinforcements. Embraer has launched a program to enhance E-Jet aircraft, including E175. To lower gas burning by 5%, the aircraft is being added with brand-new wingtips, system improvements, as well as aerodynamics.
Embraer E175 Engine as well as Efficiency
The Embraer E175 is powered by 2 General Electric kind CF34-8E turbofan engines regulated by FADEC installed under the wing. Each engine is able to supply an optimum thrust of 14,200 pound. The engine has an engine completely dry weight of 2,627 lb as well as a thrust-to-weight ratio of 5.41. The machine is totally compatible and has an optimum diameter of 136 centimeters. Engine noise abides by phase III and also IV requirements.
The maximum speed of the E175 aircraft is 0.82 mach (871 km/ h). The airplane takes 18 mins to climb as well as can fly with maximum operating speed. The E175 can fly to a maximum elevation of 41,000 ft and also a maximum variety of 3,151 km for the STD variation, 3,521 km for the LR version, and 4,074 kilometres for the AR variation.
Embraer E175 Specifications
The E175 body features a low-wing monoplane style with a standard tail shape. On the whole, the Embraer E175 has a length of 31.68 m, a wingspan of 26 m, and also an elevation of 9.86 m. The optimum lots capacity varies from 10,080 kg to 10,360 kg depending on the aircraft version.
The E175 airplane is outfitted with incorporated economical layout functions with functions to optimize guest convenience. Two doors are provided at the front and back for guests. A series of comparable doors are given independently at the front and also rear for service employees and freight.
The touchdown device of the E175 airplane is equipped with a tricycle kind, two wheel type Liebherr touchdown gear. The airplane requires a minimal path length of 1,261 m for departure as well as 1,259 m for touchdown. The minimum base size required for a 180 ° turn is 18.04 m.
Embraer E175 Cockpit as well as Avionics
The E175 cockpit has 2 seats for pilots and co-pilots, with controls as well as systems that are quickly accessible. It’s acoustic as well as thermally insulated. The hand microphone is installed on the left front door. The breaker is located directly below it. The guiding take care of is comfortably situated beside the hand microphone.
The cockpit is furnished with a series of electronic avionics systems, including multifunctional LCDs, overview panels, digital tool systems (EIS) as well as key flight displays (PFD).
Embraer E175 Cabin and also Inside
The E175 can suit 78 to 88 guests, relying on the version chosen by the driver. The cabin is large, 21.2 m long, 2.74 m large and also 2 m high. The four-parallel seating setup and also interior decoration of the double-bubble chair offer large aisles and also seating. Therefore permitting passengers to board the plane extra easily.
The E175 aircraft cabin with 78 seats configuration has an arrangement of 19 dual seats left wing and also 20 dual seats on the right. This arrangement can be additionally modified to double the fabulous seat on the right and also the first-rate seat left wing. The cabin likewise fits one viewer as well as two flight attendants. Additional seats for the 2nd onlooker can be mounted additionally.
The E175 airplane is furnished with two freight compartments under the floor. Areas are located in the front and also back wing. The front area is bigger, with a volume of 9.92 m3 and also a loading capability of 1,500 kg. The back area is smaller, with a freight volume of 7.2 m3 and a packing capability of 1,150 kg. Door internet are mounted at each freight door, while vertical nets can likewise be optionally mounted.
Embraer E175 Price and Orders
The price of the most up to date Embraer E175 aircraft is around United States $ 46 Million. Today, E175 has actually run with 12 popular guest airline companies, including Air Canada, Oman Air, Republic Airlines, Royal Jordanian Airlines, Northwest Airlines, Jet Airways, and others. More than 150 E175 are in functional services.
United Airlines positioned a contract for 30 E175 jets in April 2013 and also the initial airplane were supplied in April 2014. Mesa Airlines operates new airplane under the United Express brand name. United Airlines scheduled $ 1.1 billion at Farnborough Airshow in July 2018 for 25 E175 jets.
American Airlines booked $ 2.5 billion for 60 E175 aircraft plus choices for 90 more in December 2013. The very first airplane was supplied in February 2015. The airline ordered $ 705 million for 15 E175 airplane, boosting the total to 104. Shipping arranged to start in 2020.

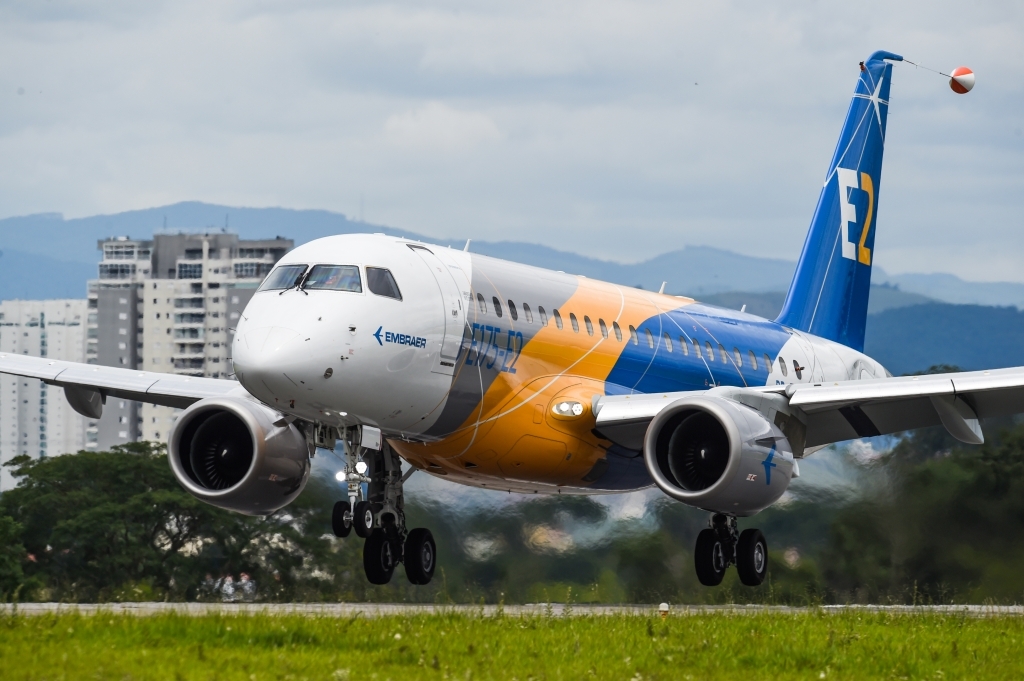

In July 2014, Trans States Holdings purchased 50 E175-E2 jets. The $ 2.4 billion agreement additionally consists of a choice for an added 50 systems. Deliveries are arranged to start in June 2020.
SkyWest put a $ 301 million order for 7 E175 jets in November 2014, as part of a previous order from the business for 100 E-Jets (40 firms as well as 60 reconfirmables) in 2013. This contract was adhered to by a new $ 422 million agreement awarded in January 2018 for 9 E175 jets, increasing the variety of orders to 158. Shipments start in 2019.
