Embraer ERJ-145 Cabin, Specifications, Inside, and also Rate.ERJ-145 is a twin-engine regional jet that can suit 50 travelers made by Embraer Aerospace, Brazil. This aircraft is the largest variation in the Embraer Regional Jet (ERJ) household. The inaugural flight ERJ-145 was performed in August 1995. The airplane was licensed by the Department of Aerospace Science and also Technology in 1996. The airplane initially run in December 1996 as well as runs with 27 airlines around the globe. In May 2008, the ERJ family obtained Russian accreditation, permitting operations in Russia and the Commonwealth of Independent Countries.

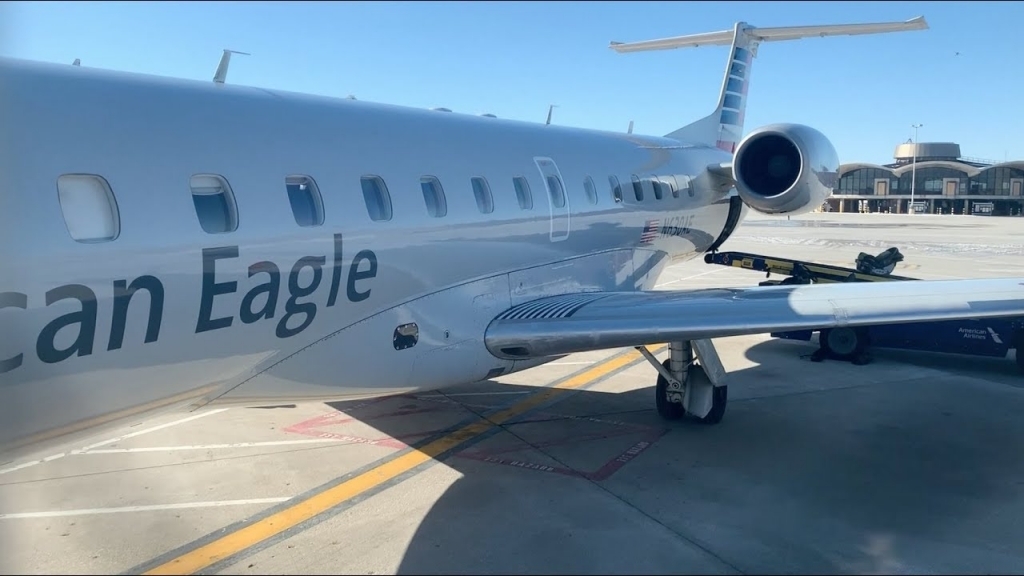

Embraer ERJ-145 Engine
The ERJ-145 airplane is powered by two Rolls-Royce AE 3007A engines with a score of 31.3 kN. The engine is placed on a post on the back of the body. Maker posts are supplied by Sonaca from Belgium. The machine is equipped with a full authority electronic engine control system. International Nacelle Systems establishes and also provides engine nacelles and optional clamshell thrusters. Engine air consumption is geared up with an air anti-icing system.
The long-distance ERJ-145LR airplane is furnished with a Rolls-Royce AE 3007A1 engine that gives 15% more power. The engine is rated at 33.1 kN to offer better climbing characteristics as well as enhance cruise efficiency in high ambient temperatures.
The additional lengthy ERJ-145XR airplane is equipped with a Rolls-Royce AE 3007A1E engine. The high-performance engine offers reduced particular gas consumption (SFC) and better efficiency in warm and high problems. The engine additionally generates a greater altitude for the condition of one engine that can not be operated.
To support engine efficiency, the aircraft is furnished with the Smiths electric power system and also Parker Hannifin’s gas administration system. The important wing storage tank has a capability of 4,173 kg of fuel.
The Embraer ERJ-145 can fly at a maximum speed of 833km/ hour. The jet solution variety and ceiling are 3.704 kilometres and 11.275 m. The solution ceiling with one engine that can not be run is 6,100 m. The departures and also landings are 2.430 m as well as 1.440 m specifically. This aircraft evaluates around 12,934 kg and the optimum departure weight is 12,934 kg.
Embraer ERJ-145 Specifications
The ERJ-145 aircraft has a circular cross-section body, two engines installed behind, a reduced swept wing placed, and a T-tailplane. Radom’s nose was supplied by Norton and the manufacture of the back as well as center of the body was subcontracted to Sonaca from Belgium.
The wings supplied by Gamesa Spain have a two spar style with a 3rd spar to sustain the touchdown equipment. The main side of the wing is made of light weight aluminum. The ERJ-145XR variant functions wings with winglets to boost lift and rise wing efficiency at cruising rates by minimizing idea vortex draws.
ENAER from Chile layouts and supplies fins and also tails. T-tail is made of a light weight aluminum box building with the leading edge of light weight aluminum on the tailplane. The primary advantage of fins is composite building.
The ERJ-145 airplane is geared up with a tricycle type landing gear that is pulled to EDE. Liebherr was farmed out for the advancement and supply of nose landing tools. Each twin Goodrich wheel system is outfitted with carbon brakes. The primary units draw in to the wing landing gear and fuselage fairing. The nose system pulls onward. The airplane is outfitted with the Hydro-Aire brake-by-wire control system. Nosewheel can be managed and also the minimal turning circle is 29.22 m.
The ERJ-145 has a variety of 2,963 km, while the remote variant of the ERJ-145LR has a range of 3,037 km and also a remote version of the added ERJ-145XR has a variety of 3,704 kilometres.
Embraer ERJ-145 Cabin and Inside
The ERJ-145 major cabin can accommodate 50 travelers in a parallel three-seat setup. Cabin as well as luggage compartments are developed by aircraft interior design business, C & D Interiors based in the United States.
The passenger door on the front side of the port is furnished with airstairs. Cabin and also luggage compartments are cool as well as pressurized. The airplane has a Hamilton Sundstrand a/c system and also a Liebherr Aerospace pressurization system. The oxygen system is provided by EROS.
Embraer ERJ-145 Cabin as well as Avionics
The cabin of Embraer ERJ-145 airplane can accommodate 2 pilots, an aviation viewer as well as a cabin crew participant. This instrumentation consists of the appearance of the head of Trip Characteristics which offers the capacity of landing a PET CAT III aircraft. Five electronic flights as well as information present systems, each measuring 20.3 centimeters × 18cm (8in × 7in) including two multifunction screens, 2 main flight screens and one onboard engine condition surveillance system (IECMS).
The Embraer ERJ-145 airplane is furnished with the Honeywell Primus 1000 avionics suite with double electronic air data computers, double mindset reference systems (AHRS), terrain accident avoidance systems (TCAS) and ground closeness alerting systems (GPWS). An optional flight monitoring system and global positioning system can be set up. This airplane has Primus 1000 shade weather radar and also Primus II double radio interaction bundle.
Early advising and also air control airplane EMB-145AEW & C is a derivative of the ERJ-145 as well as furnished with an air radar that appears on the side of Ericsson Erieye. This is in solution with the Brazilian Air Force and the Greek Flying Force. Remote sensing EMB-145RS equipped with monitoring goal equipment, in service with the Brazilian Air Force for the Brazilian Government’s Amazon SIVAM monitoring program.
Embraer ERJ-145 Price and Orders
The most recent Embraer ERJ-145 cost is around United States $ 59 Million. Passaredo Linhas Aereas obtained the very first ERJ-145 regional jet from Embraer in May 2009 as part of an agreement signed in November 2008.
In September 2009, Embraer sent out ERJ-145 jets to the Brazilian Federal Authorities Department, while Serviços Executivos Aéreos de Angola (SEAA) purchased an ERJ 145 jet from Embraer in October 2009.
Tianjin Airlines obtained the last ERJ-145 from Harbin Embraer Airplane in May 2011.
