Gulfstream G650 Inside, Cabin, Specs, and Price.Gulfstream G650 includes ultra broadband, far away functions as well as is the most costly business jet created by the US-based Gulfstream Aerospace Company. The G650 job began in May 2005 as well as was inaugurated in March 2008. The G650 prototype was released on September 29, 2009 at the Gulfstream plant facility in Savannah, Georgia, United States.
The inaugural flight of the Gulfstream G650 happened on November 25, 2009 and the very first flight examination series was finished in December 2009. Gulfstream completed the G650 tons limitation examination in May 2010 for FAA and EASA approval. Examinations are carried out on the main structural elements which include the body, wings, straight and upright stabilizers, touchdown gear and also flight control surface areas.
CPI Aerostructures signed a contract with Spirit Aerosystem in November 2010 to supply sophisticated settings up to be consisted of in the G650 aircraft. The airplane obtained its type certification from the Federal Aeronautics Administration (FAA) in September 2012. The production certificate from the FAA was received in December 2012. The aircraft additionally got type qualification from the European Safety Aviation Agency (EASA) in December 2012.
Gulfstream G650 Engine
Gulfstream G650 is powered by two Rolls-Royce Deutschland BR725A1-12 turbofan engines, which together generate 143.2 kN of power on departure. Produced in Germany, the BR725A1-12 engine was mostly created for long-distance business jets. The maker entered service in December 2012 using G650.
The BR725A1-12 engine supplies high thrust, huge haul, much better gas effectiveness, cleaner and quieter procedure as well as longer maintenance intervals. It is outfitted with a 50in sweep fan containing 24 titanium blades to enhance aerodynamic flow as well as effectiveness and also reduce noise and emissions.
It likewise has an integrated engine and also crew warning system (EICAS), system display screen, automatic twin flight control system, automated emergency situation decrease setting and also 3-D scanning climate radar (RDR-4000).
Gulfstream G650 can travel as much as 12,960 kilometres at 904km/ hour. Maximum speed and travelling are 982 kilometres/ human resources as well as 957 km/ human resources respectively. It can rise to an elevation of 51,000 feet to avoid website traffic and also poor weather condition.
The optimum takeoff weight is 47,179 kg. Wing loading and cabin pressure are 77.7 lb/ feet ² as well as 10.7 psi specifically. The take-off range as well as travelling distance are 1,829 m as well as 9,260 km respectively.
Gulfstream G650 Specs
Gulfstream G650 is created utilizing three-dimensional digital tools. This is a long-distance jet and also has a larger cabin than other business jets in its course. G650 can also land at smaller sized airports.
The G650 fuselage is oval with a level bottom. The surface is totally controlled by fly-by-wire innovation. The wing was created in 2006. Evaluating of the tunnels was finished at the end of 2008.
Gulfstream G650 is furnished with satellite telephone and also wireless net. It likewise has a water treatment facility, IWG-A6, which is created by Canadian International Water-Guard Industries (IWG). This device is able to provide water treatment for all Boeing 737 or Airplane A320 aircraft.
A circulation rate of around 4gal/ minute can be created by a 10 lb. water treatment unit on board. The upkeep device integrates ultraviolet disinfection with a changeable filter to create tidy water from the on-board inventory. It additionally has a much better self-monitoring system.
The G650 power system components consist of 2 40kVA integrated drive generators and also a 40kVA APU generator. The G650 includes a 15kVA ram air generator, which provides better electrical power capacity, nonstop power transfer capability and adds redundancy for risk-free and also trustworthy procedures.
The safety trip examination for the G650 second power circulation system was completed in October 2009 by GE Air travel. The power distribution system uses modular and solid-state power ceramic tiles that minimize installing weight as well as volume. System design lowers its overall weight.
A US-based aerospace tools supplier, NORDAM Group provides the major landing equipment doors and 20 wing-to-body fairing panels that extend to 46 feet. Gulfstream Aerospace Corporation granted a $ 100 million contract for the work to NORDAM in 2007. On November 3, 2009, NORDAM sent the initial two panels and also six major landing door ships for last setting up.
Gulfstream G650 Cockpit and Avionics
Gulfstream G650 is equipped with an enhanced 2nd generation vision system II (EVS-II), that includes a head-up II (HUD II) screen, path system as well as advisory system (RAAS) and a synthetic vision-primary trip display (SV-PFD) These functions supply a greater level of safety and security.
EVS and also SV-PFD aid pilots keep track of terrain, obstacles, as well as approaches in damaging climate condition. Real-world pictures are captured by the infrared camera (FLIR) EVS as well as presented on the HUD II in the cockpit.
The jet liner is likewise furnished with the Aircraft View II cockpit, which includes the Triplex Flight Management System, four 14in liquid crystal display screens (LCDs), and interactive network traffic visualization (INAV).
The cockpit also has a double radio system with the third NAV/ COM interaction management function and a main upkeep computer system. The fly-by-wire modern technology has been applied in advanced jet flight control systems, decreasing stress on the fuselage.
In March 2008 Honeywell was granted a $ 3 billion contract by Gulfstream Aerospace Firm to provide avionics as well as mechanical systems for G650.
Honeywell has actually given the next generation trip monitoring system (NGFMS) that displays track assistance, called for arrival time (RTA) as well as present drift-down changes and rounded engine-out trajectories. Avionics provided by Honeywell likewise includes a dual standby LCD 5in LCD (SMC) multifunction controller, a Laseref VI three inertial reference system and MCS-7120 (SATCOM) satellite interaction system.

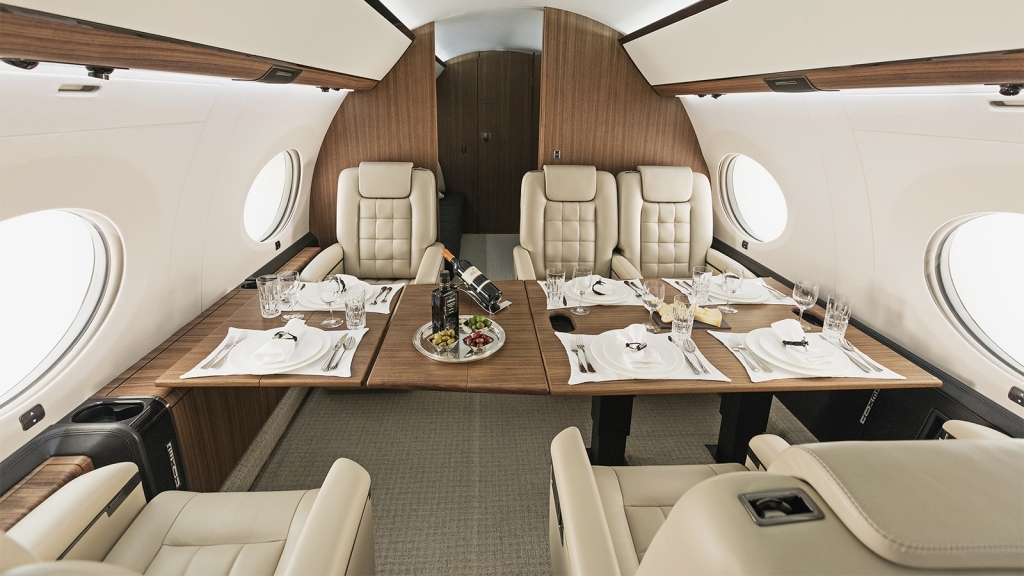

Gulfstream G650 Cabin and also Interior
Gulfstream G650 cabin integrates referrals from fleet operators. The cabin body length has actually raised by 24in, while the size as well as elevation have actually raised by 14in as well as 3in specifically contrasted to the Gulfstream G550.
The dimension of windows has increased by 20.5 in. The cabin quantity is 60.51 m3. The cabin length and height of G650 are 16.33 m and 1.95 m specifically, while the size is 2.59 m.
The cabin has enhanced on-board illumination as well as innovative communication systems. To offer more legroom, the length of the living-room has been boosted. The new cabin size allows larger seats to be accommodated and gives a lot more hallway area.
A cabin inhabits the space left in the cabin. It has a chair, a couch that is a double bed, a 26in pop-up LCD monitor and also 2 windows on each side.
The bound natural leather panel, engine framework and also accuracy setting up are utilized in the layout and production procedure of the G650 fuselage. This approach lowers setting up time and energy intake.
The fuselage is made of metal, while the tail setting up, wings, back stress bulkhead, engine safety sheet, and cabin flooring structure are made with compounds.
Gulfstream G650 Rate as well as Orders
The rate of the most recent Gulfstream G650 is around US $ 68 Million. In September 2012, Gulfstream Aerospace Firm got orders for 200 jet liners as well as 400 letters of intent for G650. In March 2009 JPMorgan Chase revealed plans to get two G650 business jets.
Concerning $ 138 million has been assigned by JPMorgan Chase to buy jets and also refurbish hangars at Westchester Flight terminal to fit them. Of the $ 138 million, around $ 120 million will be invested in the jet itself, while the remaining $ 18 million will certainly be used to remodel the garage. Gulfstream began shipping G650 to customers in December 2012. The very first jet was sent in December 2012, to US-based customers.
