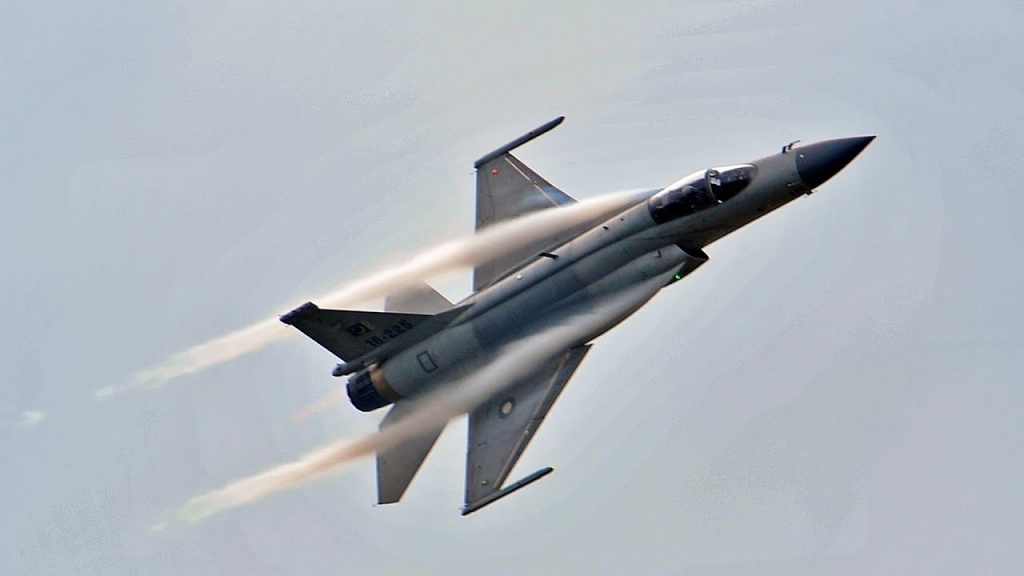

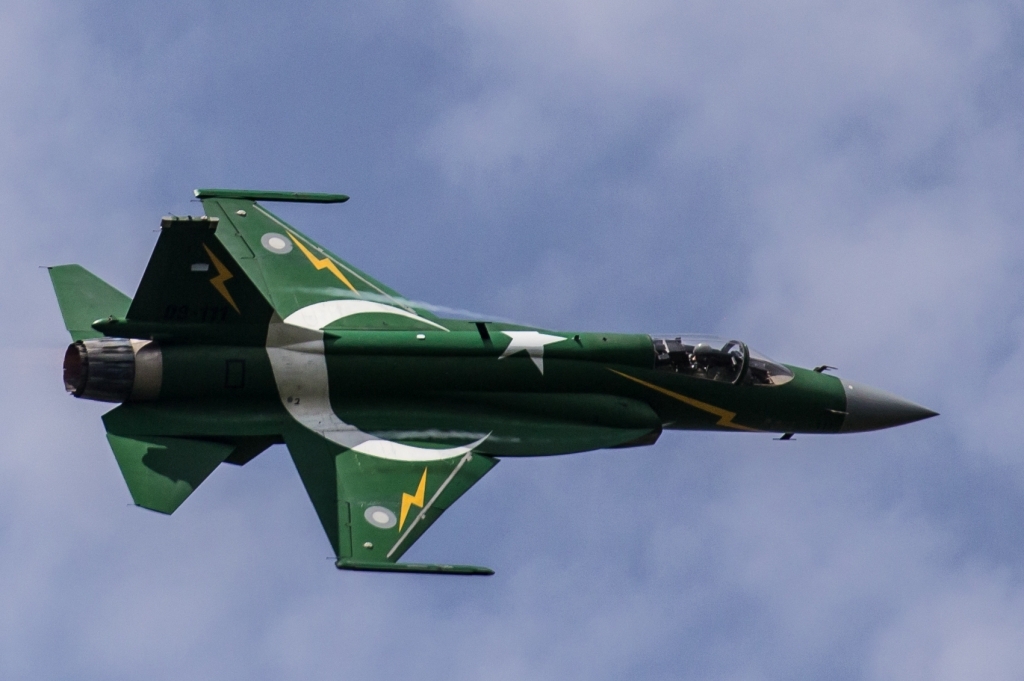

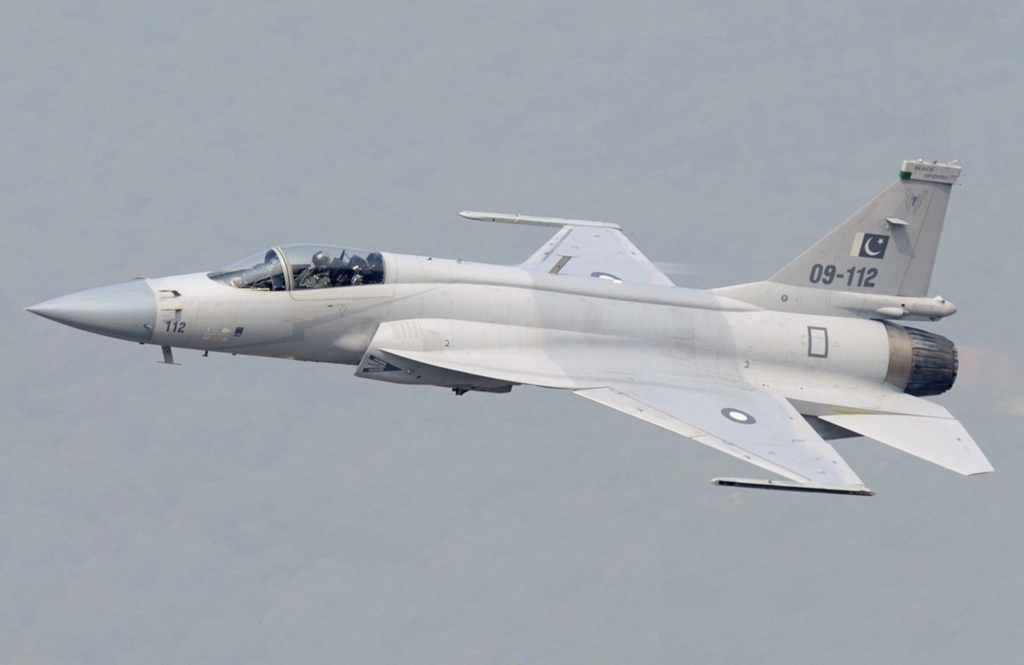

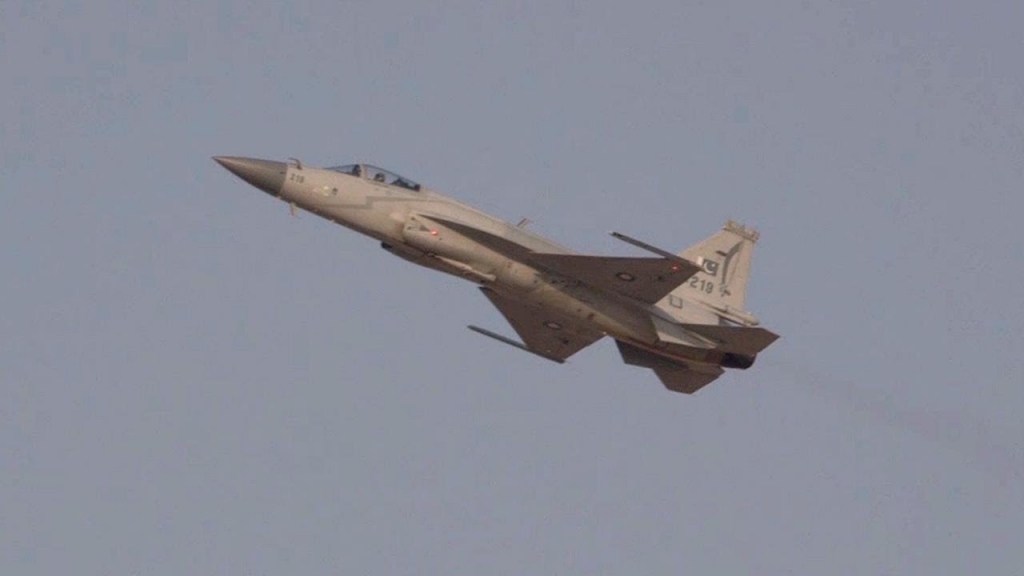

JF-17 Thunder Boxer Jet Rate, Specifications, and Cockpit.JF-17 Rumbling or FC-1 Xiaolong is a single-engine, multi-role light competitor aircraft developed collectively by Chengdu Airplane Sector Company (CAIC) and Pakistan Aeronautical Facility (SPECIAL-INTEREST GROUP). JF-17 competitor airplanes were constructed mostly to satisfy the demands of the Pakistani Air Force (PAF) and also change the present aging fleet of Nanchang A-5, Chengdu F-7P/ PG, and also Dassault Mirage III/ V.
The initial JF-17 Thunder trip was completed in August 2003 and also started operations in March 2007. The aircraft was assigned as Joint Fighter-17 (JF-17) by Pakistan and also as China-1 Fighter (FC-1) by China. The JF-17 was first displayed at the 2010 Farnborough Air Program. Two Armada Black Spiders No. 26 aircraft possessed by PAF were also on screen at the exhibit. Growth of the JF-17 variation of the two-seat boxer/ instructor was introduced in February 2012.
JF-17 Rumbling Cabin and Avionics
The JF-17 boxer jet is equipped with a glass cabin as well as a specially created cover. Polymer canopies cover the aircraft’s cabin as well as provide precise exposure. The cabin features three multifunctional screens (MFD), a head-up screen (HUD), a 32-bit weapon and also a mission management computer (WMMC) and a hand throttle as well as stick.
The cabin is likewise geared up with a breakthrough control panel (UFCP) mounted in between the MFD and also HUD. Chinese HUD is created and also established to conquer the haze errors that commonly take place in humid, sub-tropical, and also exotic areas.
The avionics suite has a JF-17 competitor jet including an electronic trip instrumentation system (EFIS), flight control system (FCS), wellness and use tracking system (HUMS), automated test devices, UHF/ VHF interaction radio, simpatico information link, inertial navigation system (INS) and also friend-or-opponent transponder recognition (IFF).
Early versions of the JF-17 boxer airplane were furnished with the KLJ-7 NRIET radar. The KLJ-7 radar can track ten targets situated outside the aesthetic array (BVR) via track-while-scan mode. Additional growth, an Italian Galileo Avionica Grifo S-7 pulse Doppler radar will certainly change the KLJ-7 radar in a JF-17 airplane. This radar can operate in 25 job modes for 200 hours continuously. Look-down, shoot-down, and ground-strike are more capabilities.
JF-17 Rumbling Engine
The JF-17 boxer jet is powered by the Klimov RD-93 turbofan engine. Each engine can generate an optimum dry thrust of 49.4 kN and also the drive with afterburn is 84.4 kN.
The innovative WS-13 turbofan engine is presently being developed by Liyang Aero Engine Firm, Guizhou, to change the Klimov RD-93. It is anticipated to produce an outcome thrust of 80-86.36 kN with a lifetime of 2,200 hrs.
The maximum speed of a JF-17/ FC-1 fighter is 1,909 km/ hr. The range and also ceiling of airplane solutions are 2,037 kilometres and 15,240 m, specifically. The functional distance is 1,352 km. The aircraft evaluates around 6,411 kg and also the maximum take-off weight is 12,474 kg.
JF-17 Rumbling Specifications
The JF-17 Thunder airframe design is a semi-monocoque framework as well as is built mainly from aluminum, steel and also titanium alloys. The airplane consists of a side air consumption as well as supersonic inlet hull diffuser of electronic equipment.

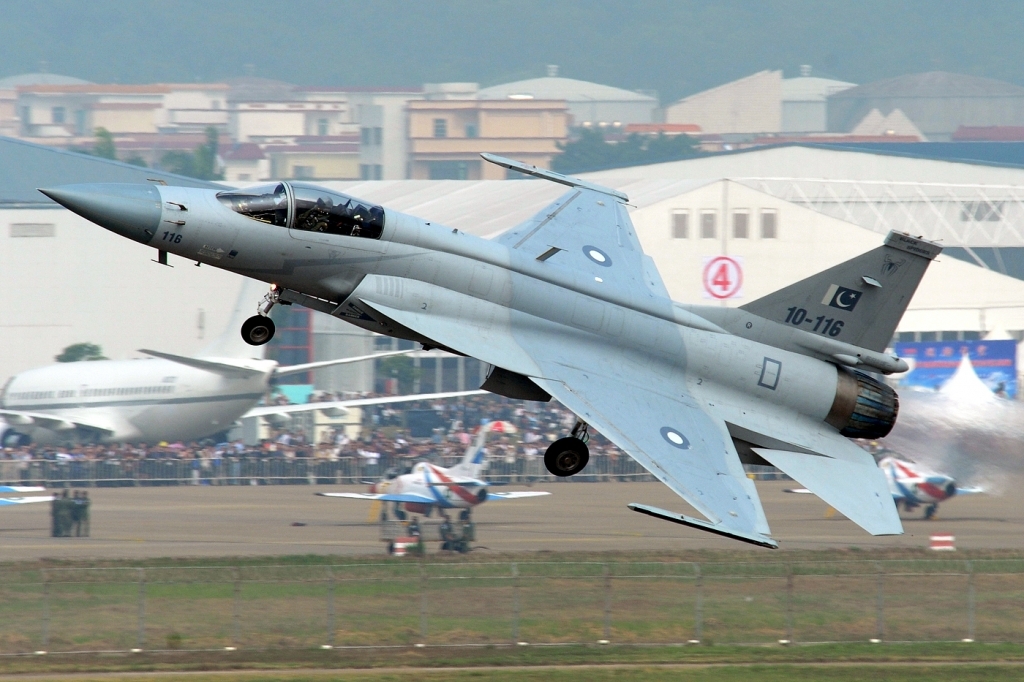

The JF-17 Thunder landing gear is a retractable tricycle placed on the JF-17. The controlled nozzle lies under the cockpit in between the air consumption, while both major wheels are mounted under the fuselage between the wings. It additionally has a hydraulic brake which consists of an automatic anti-skid system.
JF-17 Thunder is outfitted with an inner gas container lugging 2,330 kg of fuel. These tanks can be refueled through a single point pressure refueling system. The fuel system is additionally simpatico with Inflight Refueling (IFR). JF-17 generated for PAF will be geared up with IFR probes.
JF-17 Rumbling Price as well as Orders
The cost of the current JF-17 Thunder competitor jet is around US $ 25 Million. PAF got 8 JF-17 airplane. The initial two were sent on March 12, 2007 as well as the remaining six were sent out in 2008.
PAF acquired 42 JF-17 competitors as part of an agreement worth $ 800 million checked in March 2009. PAF plans to acquire 250 airplanes at a cost of $ 3bn-5bn.
The very first 2 airplane were delivered in 2009. The initial Pakistani-made JF-17 was delivered to PAF in November 2009. Around 200 JF-17 airplane were bought in 2015. China signed a contract with Pakistan in May 2011 to supply 50 extra JF-17 rumbling jets to change the aircraft combat MiG-21 as well as Northrop F-5 Tiger.
JF-17 Rumbling Weapons
JF-17/ FC-1 boxer jet can be equipped with GSh-23 dual-barrel 23 mm cannon or GSh-30 dual-30 mm. The airplane has 7 hardpoints, four of which lie under the wing, one under the fuselage as well as two placed at the wingtips. It can carry up to 3,700 kg of load.
This competitor aircraft can additionally carry SD-10 homing medium-range air-to-air missiles (MRAAM), directional bombs, satellite guided bombs, gravity bombs, anti-ship missiles, anti-radiation projectiles, anti-radiation projectiles, rocket launchers as well as laser pointer husk. Tough spots on the wing can carry short-range air-to-air projectiles AIM-9L/ M, PL-5E, PL-9C.
The JF-17/ FC-1 boxer jet protection system is equipped with a defensive assistive system (DAS), which includes a radar caution system (RWS), a rocket approach and a caution system (MAWS), a countermeasure system and also its very own radar disturbance defense system. RWS collects the direction and also proximity of adversary radars and sends out information to pilots.
MAWS consists of various optical sensing units that find and also present rocket missiles approaching the aircraft on the MFD. Lure flares and also chaff incorporated in the giving system stop enemy rockets from tracking airplane by locking enemy aircraft radar systems.
