Lockheed Martin F-16 Fighting Falcon Engine, Cabin, Specs, and also Cost.The Lockheed Martin F-16 Combating Falcon is the most productive multi-role United States Airplane competitor in the world with greater than 2,000 operating with the USAF and also 2, 500 operating with 25 other nations.
F-16 Battling Falcon and F-15 Eagle are the first airplane on the planet to be able to withstand greater g power than pilots. Combating Falcon began operations in 1979. The last of 2,231 F-16 Fighting Falcon competitors for the United States Air Force was sent out in March 2005. The very first two-seat F-16 Combating FalconD variation was obtained by the US Government in January 2009.
Lockheed Martin F-16 Battling Falcon Radar
The Northrop Grumman AN/ APG-68 radar provides 25 separate air-to-air as well as air-to-ground modes, consisting of remote, all-aspect detection as well as tracking, synchronised multi-target tracking, and high-resolution land mapping. Planar antenna selections are set up on the nose of the airplane.
Enhanced radar version, AN/ APG-68 (V) 9, has begun trip screening. This upgrade has a boost of 30% discovery array, a rise in processing speed of 5 times, a tenfold increase in memory, and a significant boost in all settings, jam resistance and also false alarm levels.
Lockheed Martin F-16 Battling Falcon Specs
This aircraft has 9 hardpoints for weapon loads: one on each wing pointer, three under each wing and one facility line under the body. The weaponry was introduced from Raytheon LAU-88 launchers, MAU-12 as well as Orgen bomb ejector shelfs. The port wing is outfitted with a General Electric M61A1 20mm multi-barrel cannon and also the weapon is attached to the cockpit HUD.
Air-to-air projectiles performed on the F-16 Battling Falcon include Lockheed Martin/ Raytheon AIM-9 Sidewinder, Raytheon AMRAAM, Raytheon Sparrow, MBDA (previously Matra BAe Dynamics) Skyflash as well as ASRAAM, as well as MBDA R550 Magic 2. On the month April 2004, the F-16 Fighting Falcon first fired a brand-new generation AIM-9X Sidewinder, which was in full production for the USAF.
The air-to-surface projectiles continued the F-16 Fighting Falcon consist of Maverick, HARM and also Shrike projectiles, created by Raytheon, as well as anti-ship missiles consisting of Boeing Harpoon and also Kongsberg Penguin. Test flight with air-to-surface missiles (JASSM) with Lockheed Martin has been performed from the F-16 Fighting Falcon.
The very first directed launch of the direct combination of direct assaults (JDAM) was successfully carried out from the F-16 Combating Falcon. F-16 Battling Falcon was the first USAF airplane to be furnished with a joint stand-off (JSOW) in April 2000.
F-16 Battling Falcon can be equipped with a Lockheed Martin (WCMD) wind-corrected ammo dispenser, which provides accuracy assistance for CBU-87, -89, and 97 cluster artilleries. Adjustment system for temporary launches, ballistic mistakes, and high winds.
F-16 Combating Falcon was the very first airplane to utilize the brand-new USAF tools rack, Edo Firm BRU-57. BRU-57 is a vertical ejection rack that increases the airplane’s ability for accuracy assisted tools such as JDAM as well as WCMD.
All-weather weatherproof tools such as the AGM-84E ground attack missile (BANG) and also Popeye II AGM-142 are intended to be included in future airplane upgrades. Various other innovative weapons consist of MICA, IRIS-T, Python IV, Active Skyflash air-to-air missiles, ALARM SYSTEM antiradiation missiles, Apache multimission antiradiation weapons, free-flight giving systems, and AS30L laser guided rockets.
F-16 Fighting Falcon carries a navigation system as well as targeting infrared Lockheed Martin LANTIRN. This is made use of combined with the BAE System holographic display screen. The Block 50/52 aircraft is outfitted with the HARM, AN/ ASQ-213 targeting system from Raytheon.
The United States Air National Guard F-16 Combating Falcon aircraft is outfitted with a Northrop Grumman Litening II/ Litening Emergency Room targeting husk.
In August 2001, Lockheed Martin was selected to supply the Sniper XR as a brand-new sophisticated targeting hull for the USAF F-16 Fighting Falcon and F-15E aircraft.
Sniper XR (prolonged range) integrates high-resolution mid-wave FLIR, twin mode lasers, CCD Televisions, laser factor trackers, and laser pens combined with advanced photo processing algorithms. Shipments began in March 2003.

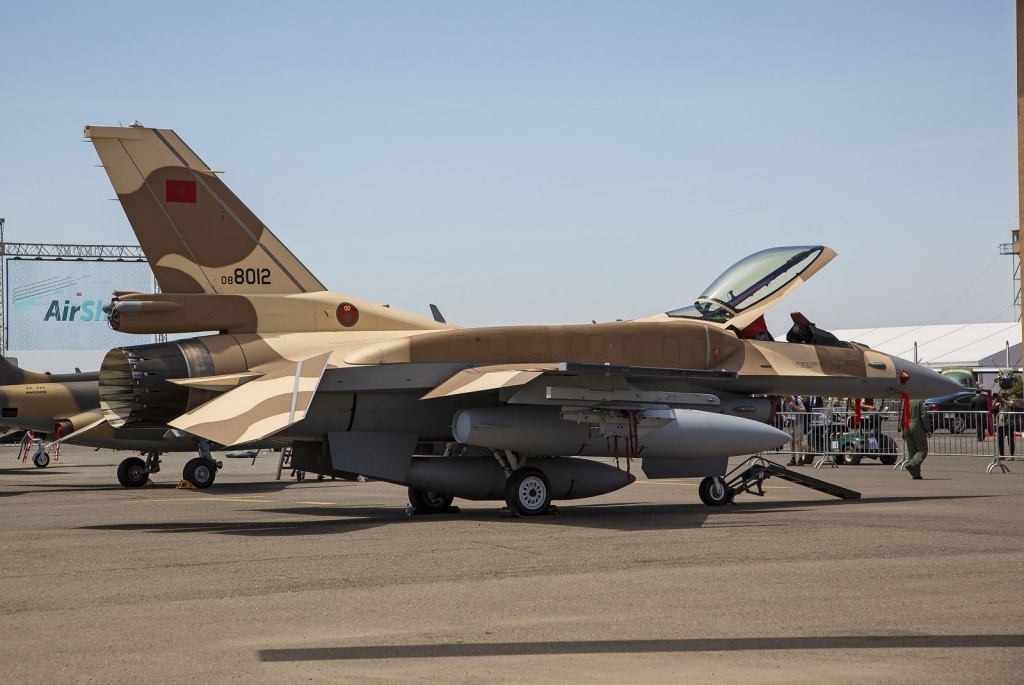

F-16 Combating Falcon boxer for Oman is geared up with a BAE Systems progressed air reconnaissance system. The ones for Poland and also Morocco are equipped with the Goodrich DB-110 reconnaissance shuck.
The Block 50 F-16 Fighting Falcon aircraft for the US is outfitted with the Lockheed Martin superheterodyne AN/ ALR-56M radar alerting receiver. F-16 Combating Falcon is likewise compatible with different jammers and also digital countermeasures, consisting of Northrop Grumman AN/ ALQ-131, Raytheon AN/ ALQ-184, Elisra SPS 3000 and Elta EL/ L-8240, and also Northrop Grumman ALQ- 165 protection collections self.
Lockheed Martin ALE-40 and ALE-47 chaff and infrared flare dispenser systems are installed in an interior install flush. ALE-40 is regulated by a pilot yet the ALE-47 installed in block 50 can be run in a fully automatic, semi-automatic or manual setting.
F-16 Combating Falcon for the Greek Air Force is being equipped with Raytheon II progressed self-protection (ASPIS) suites that consist of the Northrop Grumman ALR-93 (V) hazard warning system, Raytheon ALQ-187 jammer as well as BAE Solutions ALE-47 husk/ dispenser flare. F-16 Combating Falcon for Chile as well as Pakistan is equipped with the ITT AN/ ALQ-211 (V) electronic battle bundle.
Lockheed Martin F-16 Fighting Falcon Cockpit
The advanced devices set up at the existing F-16 Battling Falcon consists of Honeywell’s level shade multi-function fluid crystal display screen, digital surface system, modular goal computer system, color camera to record pilot sights from the head-up screen (HUD), three video recorders color layer as well as programmable display screen generator.
Under the USAF project, Certain Strike, the F-16 Battling Falcon is equipped with an upgraded information modem (IDM), which instantly offers target data to the HUD utilizing information sent out by land onlookers. The aircraft’s rear seat angle has actually been raised from 13 ° to 30 ° to give an increase in comfort for the pilot.
The innovative program, the Gold Strike task, incorporates improved IDM for the transmission of photos to as well as from various resources, consisting of land as well as unmanned aircraft systems. This system can send pictures from the LANTIRN targeting sheathing and display the video clip photo to the cabin.
The USAF F-16 Combating Falcon aircraft received a cueing system installed with a Boeing safety helmet (JHMCS), which is currently in full manufacturing. Distribution of the manufacturing system began in 2004, and the system was first released operationally throughout Operation Iraqi Flexibility.
F-16 Battling Falcon is the very first operational US airplane to obtain a gps (GPS). The aircraft has an inertial navigating system and also is proficient at Northrop Grumman (Litton) LN-39, LN-93 gyroscope laser ring or Honeywell H-423.
Various other navigation tools includes the BAE Equipments Terprom digital terrain navigating system, Gould AN/ APN-232 radar altimeter, Rockwell Collins AN/ ARN-118 (TACAN) tactical air navigating system as well as Rockwell Collins AN/ ARN-108 instrument landing system.
Interaction systems consist of Raytheon UHF AN/ ARC-164 receivers/ transmitters/ transmitters as well as Rockwell Collins VHF AM/ FM AN/ ARC-186 together with buddy/ opponent recognition/ adversary AP/ APX101 as well as encryption/ safe and secure interaction systems. AN/ APX-101 is being updated with BAE Equipments AN/ APX-113.
Lockheed Martin F-16 Battling Falcon Engine
This aircraft is powered by one engine: General Electric F110-GE-129 or Pratt and also Whitney F100-PW-229. The fuel supply is outfitted with an inert gas anti-fire system. The refueling probe in the airplane is set up at the top of the fuselage.
Lockheed Martin completed development trip testing on a brand-new conformal fuel tank (CFT) for the F-16 Battling Falcon, which will substantially raise the span of the aircraft’s mission. The initial trip of the F-16 Battling Falcon equipped with brand-new tanks was in March 2003. Greece is a CFT launch client.
Lockheed Martin F-16 Fighting Falcon Upgrade
F-16 Combating Falcon program for general configuration execution (CCIP).
An overall of 650 USAF Blocks 40/50 F-16 Combating Falcon are being updated under the basic setup execution program (CCIP). The very first phase of this program (the initial aircraft finished in January 2002) offered a core computer system and customized color cabin.
The second phase, which started in September 2002, included the installment of sophisticated AN/ APX-113 interrogators/ transponders and also the Lockheed Martin Sniper XR advancing the FLIR targeting skin.
The 3rd, which began in July 2003, added a 16 datalink link, a cueing system installed with a Boeing safety helmet and an electronic straight circumstance sign. Functional testing of competitors updated by M3 was completed in September 2004. Deliveries were finished in 2010.
A216 Block 40/50 F-16 Battling Falcon The Turkish Air Force airplane will certainly be upgraded with CCIP elements, based on the agreement gotten to in April 2005. Lockheed Martin was granted an agreement to provide modernization sets in December 2006. The increase is arranged for conclusion in 2016. The export variation of the Sniper XR capsule, PANTERA, was ordered by the Royal Norwegian Flying Force. The initial was supplied in November 2003.
Blok 50/52 is the 8th major alteration block of the F-16 Fighting Falcon that integrates the look of a color cockpit, a new set of digital warfare, sophisticated weapons and sensing units, and a much more powerful engine.
\ Block 60 F-16 E/ F, which is being established for the United Arab Emirates, features additional payload as well as range, partly due to the brand-new F110-132 engine developed by General Electric, which led to 145kN thrust.
The brand-new avionics for block 60 consist of high-speed mission computer systems, new display screen processors, three big color LCD displays, and progressed data move units with fiber-optic data transfer networks. Precision targeting is achieved by Northrop Grumman’s incorporated FLIR navigating as well as FLIR system targeting making use of Northrop Grumman’s APG-80 middle wave and nimble waveforms that actively scan digitally checked radars (AESA).
Northrop Grumman provides a series of incorporated electronic warfare. The first trip of block 60 aircraft occurred in December 2003. Shipments of 80 blocks 60 to UAE started in Might 2005 and finished in 2009.
Lockheed Martin F-16 Battling Falcon Rate as well as Orders.
Abroad orders consisting of Bahrain (10 sent), Greece (60 blocks 52 all sent out), Iraq (36 ), Israel (50 ), Egypt (24 blocks 40), Morocco (24 ), New Zealand (28 ), United Arab Emirates (80 blocks 60, first sent 2005), Singapore (20 ), South Korea (20 blocks 52 all sent out), Oman (12 ), Chile (ten blocks 50) and also Poland (48 blocks 52).
In December 2015, Lockheed Martin Aeronautics was awarded a set price of $ 914 million and a cost-plus contract to raise the F-16 Combating Falcon aircraft for the Republic of Singapore Flying Force (RSAF). Work is arranged for completion in June 2023.
