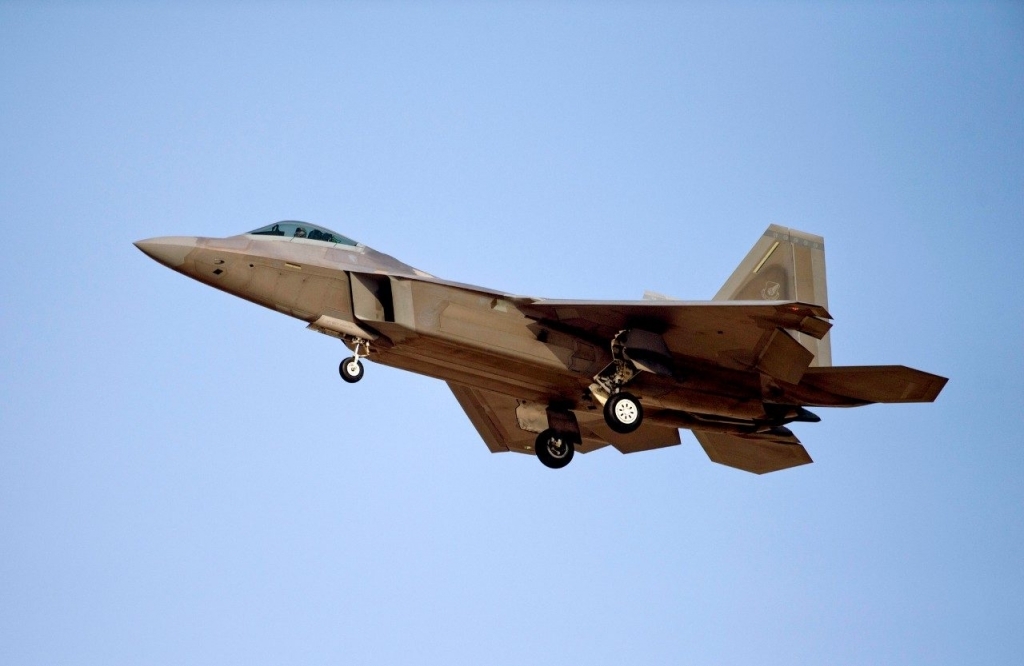

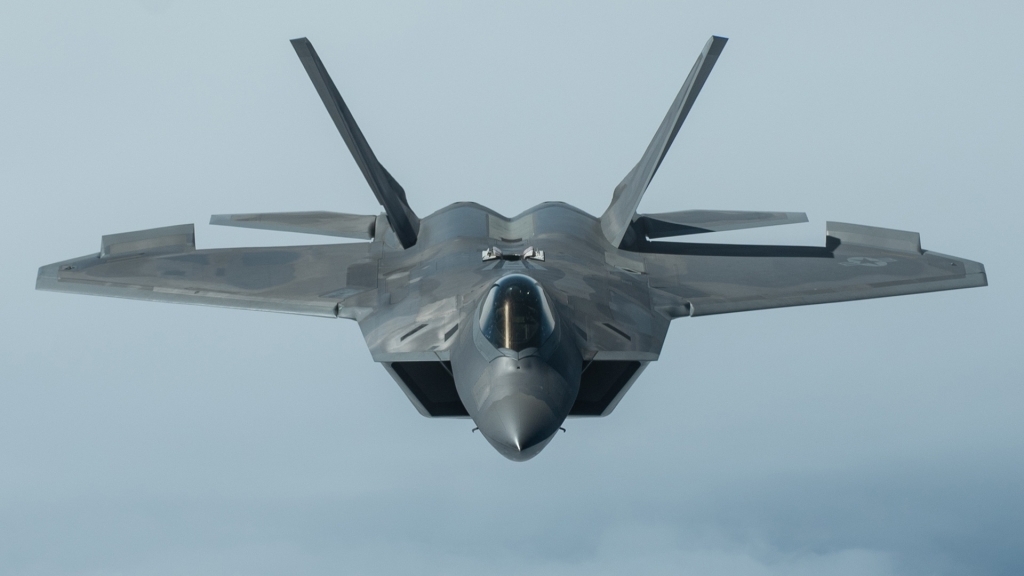

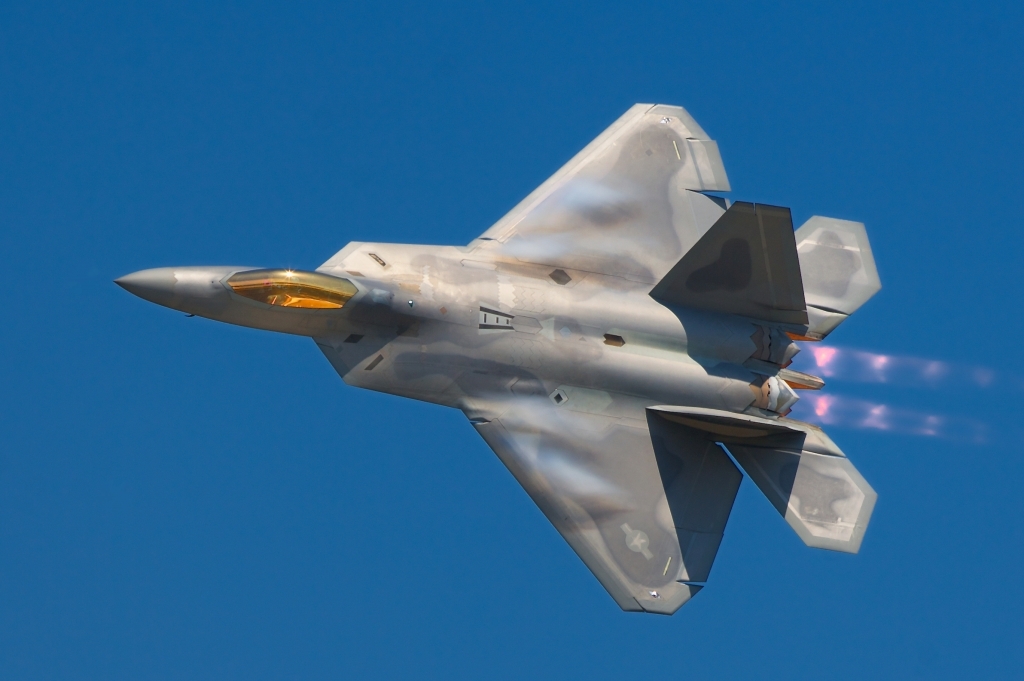

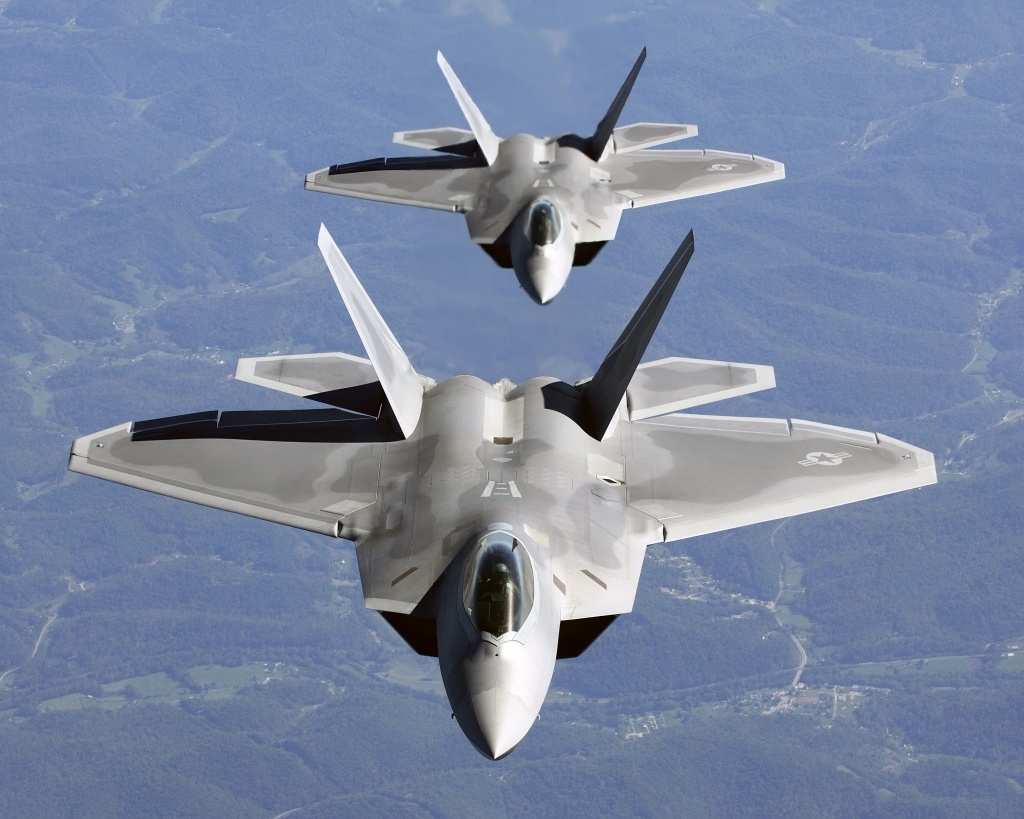

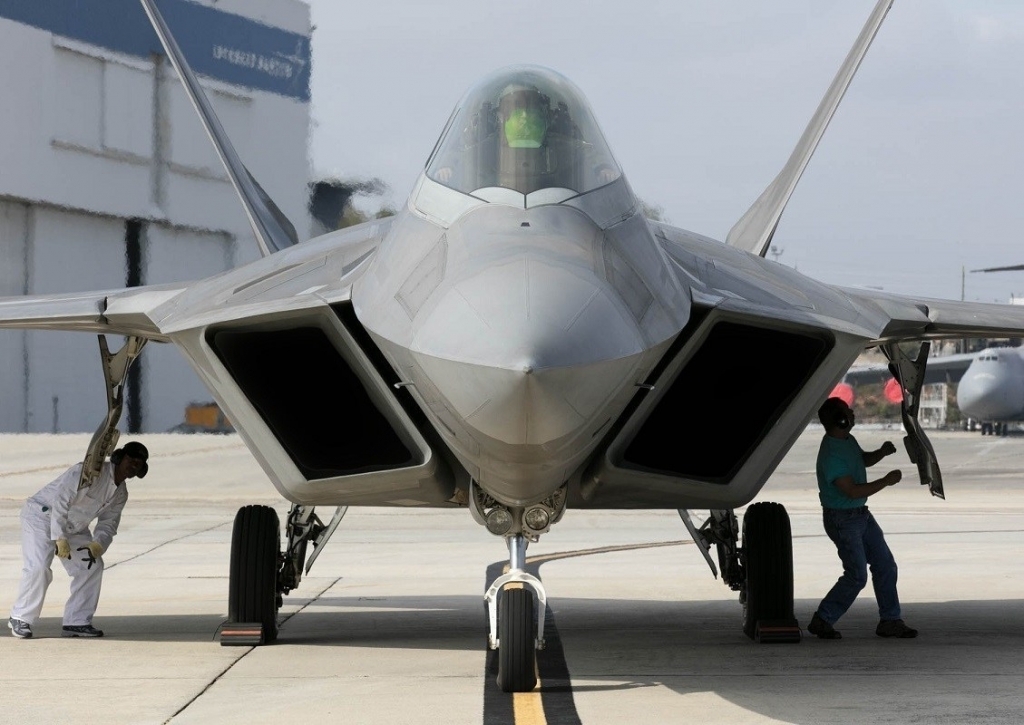

Lockheed Martin F-22 Raptor Cabin, Specs, Engine, and Cost.The F-22 Raptor competitor jet specifies air dominance. Established at the Aeronautical Equipment Facility, Wright-Patterson Air Force Base, Ohio. The F-22 Raptor is a supersonic twin-engine boxer jet, which has won the 2006 Robert J Collier Cup from the American National Aeronautic Organization (NAA) to supply unprecedented air prominence. The F-22 has actually demonstrated precision strike capacity, defeating air and ground based hazards with unmatched lethal degrees and also defense abilities. The special mix of the 5th Generation F-22 from stealth, speed, agility, as well as situational recognition, integrated with dangerous air-to-air as well as air-to-ground weapons, makes it the very best air-dominated boxer in the world.
The F-22 is the most leading boxer worldwide, but prospective adversaries continue to establish capabilities meant to challenge the ability of the US and also allied flying force to gain and keep air supremacy. Keeping that in mind, Lockheed Martin is devoted to collaborating with the UNITED STATE Air Force. on an effective F-22 fight enhancement program to boost the unbalanced supremacy of Raptor over existing and also prospective opponents The capability of the Raptor F-22 continues to be important to prevent as well as defeat hazards and ensure local as well as international safety in the future.
F-22 Raptor Engine
The F-22 Raptor fighter jet is powered by 2 Pratt as well as Whitney F119-100 engines. F119-100 is a low after-combustion turbofan short engine that creates 156 kN of power. F119 is the very first fighter airplane engine outfitted with a broad hollow fan blade installed at the very first follower stage.
Drive vectoring is regulated by Hamilton Criterion double repetitive full authority electronic engine control (FADEC). FADEC is incorporated with flight control computer systems at BAE Equipments, flight control, automobile monitoring systems.
The Pratt & Whitney F119 engine is created to enable upkeep of conventional flight paths making use of only 6 common devices offered at commercial hardware stores.
F-22 Raptor Specifications
The F-22 construction is titanium 39%, 24% composite, 16% aluminum and 1% polycarbonate weight. Titanium is utilized for high strength-to-weight proportions in vital stress locations, consisting of some bulkheads, as well as for the top quality of their warm resistance in the hot parts of the airplane.
Carbon fiber composites have actually been utilized to frame the fuselage, doors, intermediate spars on the wings, and for natural leather panels construction of honeycomb sandwiches.
These airplane electronic war systems include radar sharp receivers and BAE & electronic war (IEWS) information systems (previously Lockheed Martin Sanders) rocket launch detectors.
The AN/ APG-77 radar was developed for the F-22 by the Northrop Grumman Electronic Systems and also Sensor Division as well as Raytheon Electronic Solutions. The radar utilizes an energetic online scanned antenna array of 2,000 transmitter/ receiver components, which provide agility, reduced radar random sample and vast bandwidth. AN/ APG-77 deliveries started in May 2005.
The TRW CNI system of communication, navigating as well as identification consists of intra-flight datalinks, links to joint tactical details circulation systems (JTIDS), as well as a close friend or adversary identification system (IFF).
Boeing is accountable for the assimilation of mission as well as avionics software program. The aircraft has an inertial referral to Northrop Grumman’s LTN-100G laser gyroscope (formerly Litton), a gps, and a microwave touchdown system.
F-22 Raptor Cockpit and also Avionics
The cabin is furnished with a throttle and hand stick (HOTAS) control. The cabin has six colored fluid crystal displays. Kaiser Electronics’ major multifunction estimate display supplies a sight of air and ground tactical circumstance plans including danger identity, danger concern as well as tracking details.
Two displays give interaction, navigating, identification and flight information. 3 secondary displays show air and also land dangers, store management, as well as air risk info.
The BAE Solution (HUD) head-up display shows target condition, weapon status, tool envelopes and also shot signals. Camera record information on the HUD for post mission evaluation.
F-22 Raptor Weapons
Versions of the M61A2 Vulcan cannon are installed internally over the right air intake. General Dynamics’ ammunition-free handling system holds 480 rounds of 20mm ammo as well as feeds a gun with a speed of 100 rounds per secondly.
The F-22 has four tough hooks on the wing, each ranked at 2,270 kg, which can carry the AIM-120A AMRAAM or an external gas container. The Raptor has 3 inner weapons areas. The main tool bay can lug 6 AMRAAM AIM-120C or two AMRAAM rockets and also two mixed 1000 GB GB-32 straight strike ammunition (JDAM).
This bay is equipped with EDO Corp. LAU-142/ A AVEL AMRAAM launcher upright launcher which is a pneumatically-driven ejection system regulated by a shop management system. Raytheon AMRAAM air-to-air projectiles are all-weather all-weather fire-and-forget projectiles, with a variety of 50nm. Each side bay can be filled with one Lockheed Martin/ Raytheon AIM-9M or AIM-9X Sidewinder all-aspect short-range air-to-air rocket.
GPS-guided, small-diameter bomb Boeing (SDB) was integrated right into the F/ A-22 in February 2007. Eight SDBs can be lugged with 2 AMRAAM missiles.
F-22 Raptor Rate and also Orders
The price of the F-22 Raptor competitor jet is US $ 120 Million in 2006. The F-22 Raptors’ very first functional wing was Langley AFB in Virginia with a fleet of 40 aircraft. Elmendorff AFB, Alaska, came to be the 2nd in August 2007 as well as the 3rd Holloman AFB, New Mexico in June 2008. Functional Raptors are additionally based at Hawaii’s Hickam AFB.
60 Raptors were subsequently ordered in July 2007, bringing total orders to 183, with production till 2011. In November 2008, $ 40 million in financing for 4 extra raptors was approved by the Pentagon, boosting the overall bought jets to 187, with acquisitions scheduled for the 2nd half of the year financial 2009. USAF has a complete need of 243 aircraft yet funds are not available for greater than 187. In September 2009, around 145 airplane were sent to the USAF.
In February 2007, 12 F-22 aircraft began releasing the initial competitor aircraft abroad at Kadena Air Base in Japan. The airplane returned in May 2007. In January 2009, 12 F-22 jets were released at Kadena Air Base from Langley Flying Force Base in Japan for three months as part of the 27th Fight Squadron.
In April 2009, the manufacturing of the F-22 competitor jet was officially quit when Defense Assistant Robert Gates announced that the Pentagon would certainly finish the Lockheed-run F-22 program and also boost manufacturing of the F-35 joint strike strike. The accessibility of less costly as well as even more flexible F-35 fighter aircraft has caused production stopping on F-22 competitor jets.
