Pilatus PC-12 NG Inside, Cockpit, Specifications, and also Rate.Pilatus PC-12 NG is a brand-new generation, solitary traveler engine and cargo transportation aircraft created and developed by Pilatus Aircraft of Switzerland. The airplane can execute various objectives including executive transportation, freight, air ambulance, police, smoke dives, boundary monitoring, armed forces liaison, airline companies as well as unique federal government missions.
The aircraft was introduced in Orlando during the 2006 NBAA (National Service Aviation Organization) conference. Pilatus PC-12 NG was formally released in 2007 in Atlanta.
The i-Pad delivery program was revealed on March 7, 2011. Under this program, the firm provided the Apple iPad to new customers who acquired pilatus aircraft starting February 2011 and past. The iPad will certainly display pilot details manuals (PIM), delivering papers and text files that record info regarding the assembly as well as manufacture of specific aircraft.
Pilatus PC-12 NG Cabin and also Interior

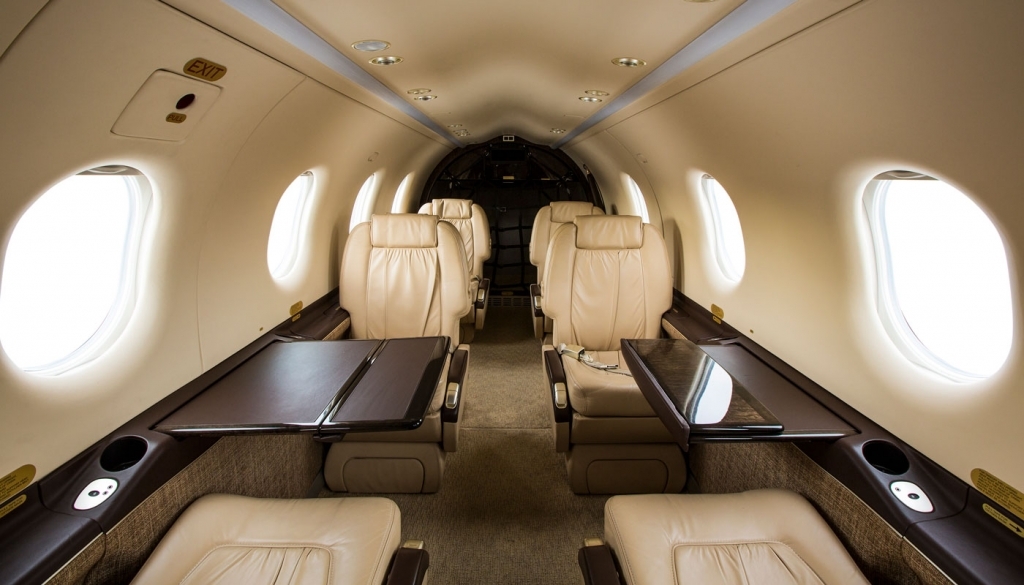

Pilatus PC-12 NG has a large and also comfortable 330 feet ³ cabin. This cabin is outfitted with nine 360 ° incline traveler seats, large home windows, and also traveler doors 0.61 m × 1.35 m. Cabin can easily adapt to various applications.

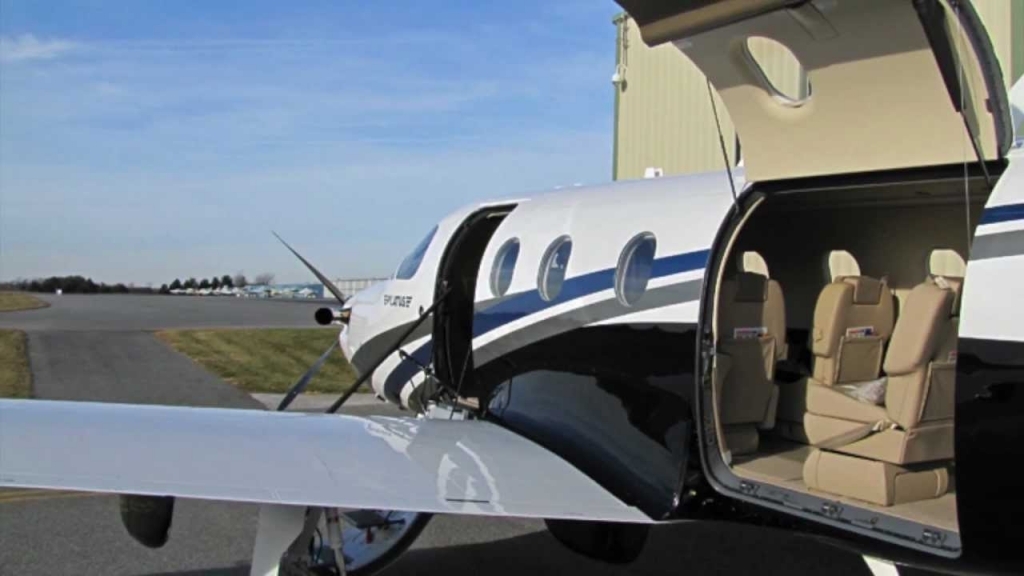

The aircraft also has a big pallet-sized freight door, 1.35 m long and 1.32 m broad, on the left side of the fuselage area to tons and also reduced the freight. The 1.13 m ³ volume luggage compartment is utilized to save travel luggage as well as passenger accessories. The cabin size as well as size are 5.16 m and 1.52 m, respectively. The flooring width is 1.30 m. The cabin quantity is 9.34 m ³ and the head space is 1.47 m.
Pilatus PC-12 NG Specs and also Engine
The Pilatus PC-12 NG is powered by a solitary Pratt & Whitney Canada PT6A-67B turboprop and a four-bladed Hartzell HC E4A-3D/ E10477K prop.
The engine can generate 895kW (1,200 shp) of result power. The prop can rotate at a consistent speed of 1,700 rpm to 2,200 rpm. The size is 2.67 m. The length as well as diameter of the equipments are 1.87 m and also 0.48 m, respectively.
The epicyclic speed reduction gearbox mounted in the engine minimizes propeller noise by maximizing the result speed. The engine is additionally furnished with multistage axial compressors as well as one-stage centrifuges, backflow heaters and also one-stage compressor wind turbines.
The Pilatus PC-12 NG can climb at a speed of 585m per minute. The cruise ship rate and plane kiosks are 519 kilometres/ h and also 124 kilometres/ hr respectively. The optimum range is 2.889 kilometres. The Pilatus PC-12 NG solution ceiling is 9,144 m. Plane departure as well as touchdown distances are 808 m as well as 558 m. The aircraft evaluates around 2,761 kg and the maximum departure weight is 4,740 kg. Pilatus PC-12 NG can land on a brief and unpaved runway.
Pilatus PC-12 NG Variant
The U-28A is a military variation of a single engine from the PC-12 aircraft. This remains in solution with unique USAF procedures pressures. The airplane can operate from brief as well as not fixed path surface areas and also on dust and also dirt strips. This is combined with innovative communication and navigating tools, and also weather condition radar. The aircraft was presented in August 2005. The U-28A can cruise at a maximum speed of 270kt (500km/ h) to a maximum range of 1.513 nm (2,803 km).
Pilatus PC-12 NG Cockpit as well as Avionics
Pilatus PC-12 NG has a glass cockpit with two seats for pilots and co-pilots. The cockpit likewise includes a glass canopy for clear presence. It is equipped with the innovative Honeywell Primus Pinnacle avionics system. The avionics collection set up on the airplane consists of two main trip displays (PFD) and also 2 multifunction screens (MFD), flight information and graphics and also graphics.
The Pilatus PC-12 NG cabin is geared up with an advanced arrow control device (CCD) in between 2 crew seats. The CCD system is outfitted with a trackball, scroll wheel, and switches to select two huge multifunction screens.
Both PFD and MFD supply clear presence and display screen trip information, engine tracking, aircraft configuration, stress as well as environmental protection. The cockpit’s inside was developed by the BMW Team Designworks USA with the intent of establishing new requirements for functional designs as well as aesthetics.
Pilatus PC-12 NG Rate and also Orders
The price of the most up to date Pilatus PC-12 NG is United States $ 4.9 Million. In July 2010, Pilatus Airplane sent its 1,000 th PC-12, PC-12 NG, to its brand-new owner in Halifax, Nova Scotia.
The Finnish Flying force ordered 6 Pilatus PC-12 NGs in 2009 for EUR 22.5 million. The very first Pilatus PC-12 NG airplane was sent out to the Finnish Flying Force on July 1, 2010. The shipment ended in August 2010. Pilatus PC-12 NG replaces the Piper PA-31-350 Chieftain aircraft, which has been operating with the Finnish Air Force given that 1983.
On January 26, 2010, Pilate introduced that it had actually delivered around 100 Pilatus PC-12 NG aircraft in 2009 making it the highest possible number ever before achieved. At the end of 2010, 1,039 PC-12 had actually been sent out to consumers in 38 nations
