Saab 2000 Cockpit, Rate, Specifications, and Interior.Saab 2000 is a regional turboprop engine created by Saab Airplane, Sweden. The Saab 2000 aircraft made its initial flight in March 1992 as well as entered service with the launch consumer Crossair (now Switzerland) in 1994. The Saab 2000 aircraft is a prolonged version of the Saab 340.
The Saab 2000 airplane is being established as an early warning and air control version (AEWC). This variation is equipped with Saab Systems Erieye PS-890 which agreed the spinal column which appeared like a monitoring radar. One more variation is the Saab 2000FI, a trip evaluation mission aircraft created for the Japanese Civil Air Travel Bureau.
Saab 2000 Engine as well as Efficiency
The Saab 2000 aircraft are powered by two Rolls-Royce Allison AE 2100A turboprop engines. Each engine is capable of creating an optimal power of 3,096 kW as well as is furnished with Lucas Aerospace Full Authority Digital Engine Control (FADEC). The aircraft is furnished with an extra Sundstrand power system providing power for engine start and for the air conditioning system.
Saab 2000 airplane can fly with an optimum cruise ship rate of 685 kilometres/ h and also have an optimal range of 2,868 kilometres. High speed performance allows airline company operators to exchange fleet routines with jets on 500 nm routes. The airplane can lug 50 passengers to locations of greater than 1,000 nm in 3 hrs flight time.
Saab 2000 Specs

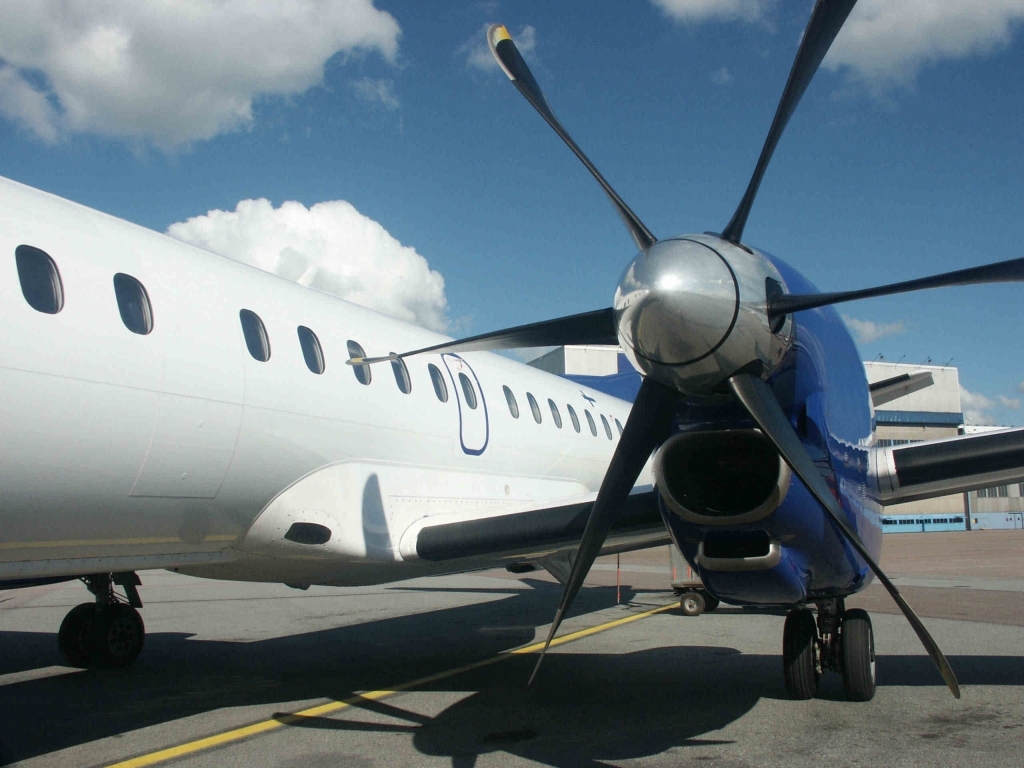

The design of the Saab 2000 airframe is based on the Saab 340. The aircraft is incorporated with low wings as well as a traditional tail. The airplane propulsion system is a six-bladed type Dowty R381 prop system. The prop is geared up with electrical de-icing. In general, Saab 2000 has a length of 27.28 m, a body diameter of 2.31 m, an elevation of 7.73 m, as well as a wingspan of 24.76 m.
The Saab 2000 aircraft has 2 essential fuel tanks placed on the wing. The storage tank can hold fuel with an overall ability of 5,300 l. The fuel system is outfitted with a gravity overwing refueling terminal on each wing and also one pressure refueling station on the right wing.
Saab 2000 Cockpit as well as Avionics
The Saab 2000 cabin is equipped with the Rockwell Collins Pro Line 4 avionics collection with an incorporated avionics cpu (IAP), engine indication as well as staff warning system (EICAS) as well as web traffic caution systems and influence evasion systems (TCAS). Flight control systems include the Message and Mindset Reference System (AHRS) and the Digital Air Data System (FATHERS).
The Saab 2000 navigation collection includes an inertia reference system, Rockwell Collins WR-840 solid-state weather radar with an optional disturbance discovery radar. The cabin has Swedlow panel windscreen which is electrically warmed.
Saab 2000 Cabin and also Interior
The Saab 2000 cabin is 16.7 m long as well as 2.16 m vast. The cabin is configured in one aisle with three-parallel seats arrangements to fit 50 to 58 travelers. The cabin is geared up with an energetic Ultra Electronics sound control system. The airplane is furnished with a Pacific Scientific fire discovery system, a Kidde Graviner fire extinguisher system, A/C Hamilton Criterion Recircair as well as an environmental control system that makes use of air from the engine. The pressurized and also air-conditioned cabin will make passengers really feel comfortable when on the plane.
Saab 2000 Rate and Orders
The price of the Saab 2000 aircraft is around US $ 15 million. There are 60 Saab 2000 airplane operating throughout the globe in France, Ireland, Italy, Japan, Lithuania, Marshall Islands, Sweden, Switzerland and the USA. Nonetheless, aircraft manufacturing had actually dropped in 1999.
Saab Airplane, headquartered in Washington DC, rents around 289 Saab 340 and also Saab 2000 aircraft to 25 airline companies. Airlines that rented Saab 2000 consisted of AirJet of France, Lithuanian Airlines, AeroLitoral of Mexico, Transwest Air of Canada, Blue 1 (previously Air Botnia) from Finland and OLT GmbH from Germany.
