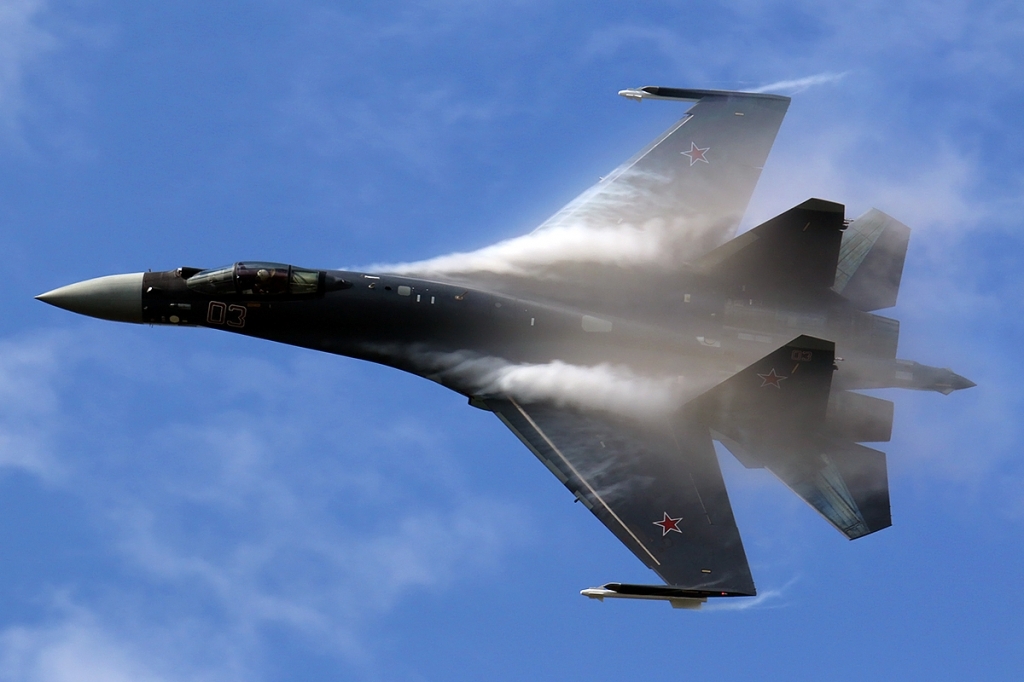

Sukhoi Su-35 Boxer Engine, Cockpit, Specifications, and Rate.Sukhoi Su-35 is a sophisticated multirole air superiority boxer aircraft established from the Su-27. This airplane has high maneuverability (+ 9g) with high angle attack, as well as is geared up with a high-capable weapon system that contributes to the phenomenal air battle capacities of the new airplane. The maximum degree rate is 2,390 kilometres/ h or Mach 2.25. The most recent variation of the Sukhoi Su-35, Su-35BM (bolshaya modernizatsiya – great modernization).
Sukhoi Su-35 was established to match the F-15 Eagle and also F-16 Combating Falcon. This aircraft was developed, evaluated and also presented into serial manufacturing by the Sukhoi Layout Bureau, based in Moscow, and also created by KNAPPO from Komsomolsk-on-Amur. The two companies become part of the Sukhoi Aeronautics Joint Stock Company.
The Su-35 trip examination began on February 18, 2008. During a high-speed land examination in April 2009, the third model of the Su-35 program crashed at Komsomolsk-on-Armur. The crash damaged the new NIIP Irbis-E radar established mounted on the Su-35.
Sukhoi Su-35 Defense
This aircraft has 12 hardpoints to bring weapons as well as external stores. Each wing has four sticks – one on the wingtip and 3 stations under the wing. There are 2 tough factors on the bottom of the body in the facility line and one under each engine.
Air-to-air missile aircraft can consist of Vympel R-27 (designation of AA AA-10 Alamo), radar led mid-range radar Vympel R-77 (AA-12 Enhancer) as well as infrared infrared-guided Vympel brief range R-73E (Archer AA-11).
Air-to-surface projectiles include Molniya Kh-29 (AS-14 Kedge) tactical rockets, Kh-31P (AS-17 Krypton) anti-radiation projectiles and Kh-58UShE (AS-11 Kilter) lengthy variety anti-missile radiation.
Su-35 anti-ship projectiles consist of the Kh-31A, the Kh-59MK long range (AS-18 Kazoo), long-range Kalibr, and the heavy YPO Mashinostroenia long-range projectile.
Sukhoi Su-35 can be equipped with a number of guided bombs, including TV-guided KAB-500Kr bombs, KAB-500S-E satellite led bombs, LGB-250 laser assisted bombs, bombs assisted by TV Kab-1500Kr and KAB laser overview bombs. -1500 LG.
The aircraft can additionally be armed with 80mm, 122mm, 266mm and 420mm rockets. Gryazev-Shipunov 30mm GSh-30-1 tool is installed in the right wing origin with 150 rounds of ammunition.
This collection of airplane digital warfare consists of a radar warning system, radar jammer, cooperative radar interference system, missile method warner, laser detector and also chaff and also flare dispensers.
Sukhoi Su-35 Specs
Contrasted to the design of the Su-27 where it originated from, the front body size of the Su-35 has actually been enhanced to accommodate 900mm size antennas larger than the Irbis-E radar.
High toughness, low weight composite materials have been made use of for non-structural items such as radomas, nose wheels, front doors and also flaps. Some airplane body frameworks are made of carbon fiber and also aluminum lithium alloys.
Sukhoi Su-35 Cabin as well as Avionics
Sukhoi Su-35 cabin is equipped with 2 high resolution 230mm x 305mm MFI-35 liquid crystal displays with a multifunctional control board and also IKSh-1M major screen with a broad viewing location of 20 ° x 30 °. The cockpit has a central control column as well as is equipped with a zero-zero Zvesda K-36D-3.5 E ejection seat that allows the pilot to release absolutely no rate and also no elevation.
This airplane has a quadruplex, electronic fly-by-wire control created by Avionika Moscow Research Study as well as Manufacturing Facility JSC (MNPK Avionika).
The pilot has two VHF/ UHF encrypted radio communication systems and an obstructed military data connection system in between armada planes and also between aircraft and also ground control. The navigating system is based upon an electronic map display screen with a strapdown inertial navigating system and also a gps.
Su-35 Radar includes a multimode X-band phased collection, Irbis-E, supplied by the Tikhomirov Study Institute for Research-Scientific Design (NIIP), based in Zhukovsky. Irbis-E is a high-performance radar made for Su-35 airplane.
The 900mm stage phased array antenna is mounted on a hydraulic actuator for mechanical steering. Electronic steering offers azimuth and 60 ° altitude coverage. With mechanical and also electronic scanning the protection is 120 °.
The radar can identify low and clandestine observable airplane, unmanned aerial lorries as well as missiles with a radar cross section of 0.01 m ² at distances of as much as 90 km. Radar setting includes air to air, air to land, air to sea, mapping, Doppler rays, as well as artificial radar aperture settings. It can detect and track up to 30 airborne targets with a 3m ² radar area section (RCS) at a distance of 400 kilometres utilizing track-while-scan mode.
The search control and also infrared fire radar, OLS-35 IRST, consists of infrared sensing units, laser precursors, target designers and television cams. The precision of the laser rangefinder is the CEM 5m (possibility of round error), as much as an optimal series of 20 km versus targets in the air and also 30km against targets ashore. OLS-35 is a high-performance system with ± 90 ° azimuth and also height protection + 60 °/ -15 °.
The system procurement variety versus non-afterburning targets is 50 kilometres ahead and also 90 kilometres in reverse. The Su-35 can likewise be equipped with targeting UOMZ Sapsan as well as laser classification coverings.
Sukhoi Su-35 Engine
Sukhoi Su-35 is powered by 2 Sturn/ UFA AL-31F 117S turbofan engines with drive vectoring nozzle controls, each providing drive of 86.3 kN or 142.2 kN with afterburn. The maker was developed jointly by Sukhoi, Saturn and also UMPO.
The overall gas ability is 14,350 l. To raise protection as well as higher toughness contrasted to previous versions, the Su-35 integrates extra tailin and also origin fin containers. The fuel tank is constructed from aluminum lithium construction and lies on the wing, fuselage and at the end of the twin tail-tip. The unreferred variety of internal gas is 1,580 km.
For refueling in trip, the airplane is outfitted with a refueling probe on the side of the nose. Two outside gas tanks, the PTB-2000 kind, provide an additional 4,000 l of gas. Ferry range with 2 outside tanks is 4,500 kilometres.
This aircraft can fly with a maximum speed of 2,390 kilometres/ hr. The regular variety and also ferryboats of each aircraft are 3,600 km and also 4,200 kilometres. The optimum elevation is 18,000 m. The Su-35 considers around 18,400 kg and the maximum launch weight is 34,500 kg.
Sukhoi Su-35 Cost as well as Orders
The price of the most recent Su-35 boxer airplane is around US $ 45 – 65 million. The initial Su-35 aircraft was turned over to the State Trip Test Center (GLITS) to 929 for trip screening in August 2011. The Russian Ministry of Defense obtained six Su-35 production aircraft from Sukhoi in December 2012.
The Russian Flying force bought 48 Sukhoi Su-35 jets in August 2009 with shipments scheduled to run till 2015. Sukhoi started producing parts needed for airplane assembly in November 2009. The information administration system is integrated with the onboard subsystem as well as brand-new phased selections. radar systems with detection of long-range air targets have been installed on the airplane, which are currently undertaking initial screening.
