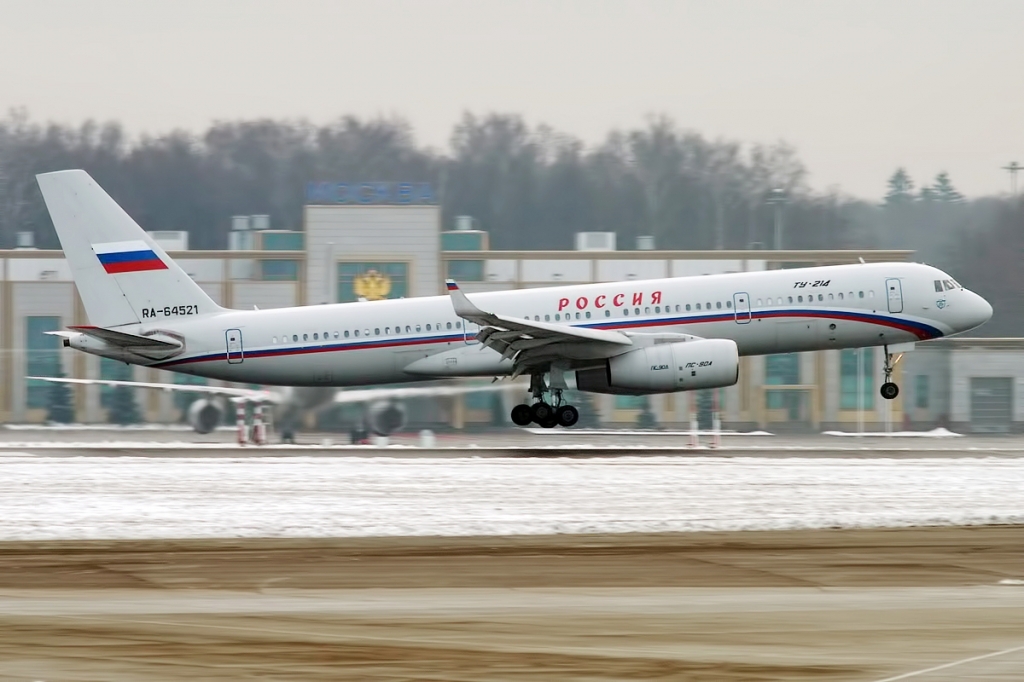

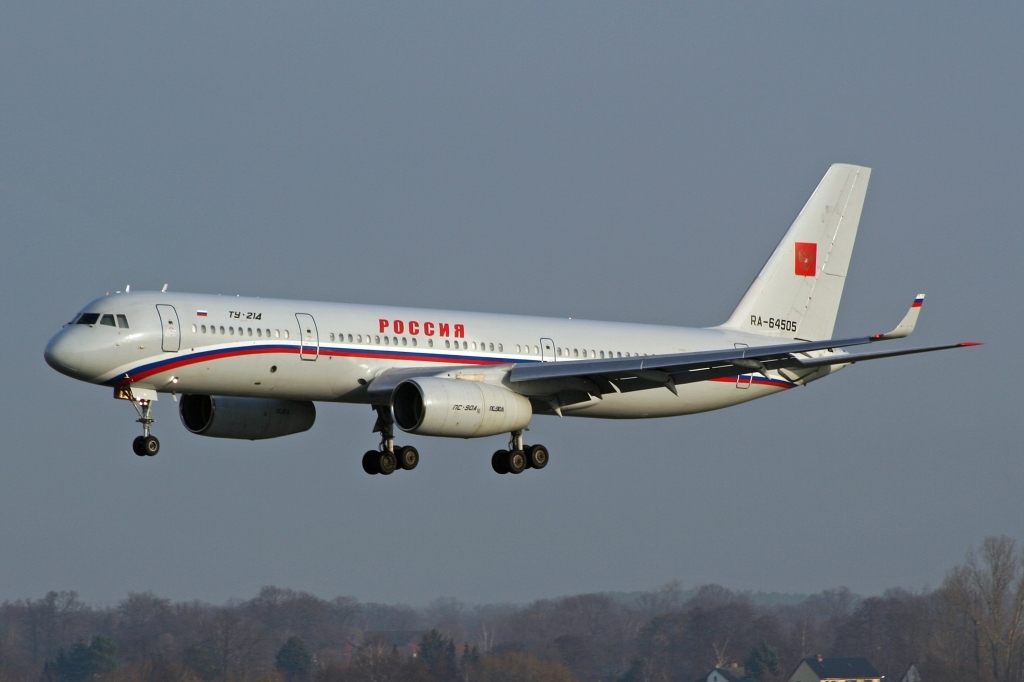

Tupolev Tu-214 Inside, Cabin, Specifications, Rate.The Tupolev Tu-214 is a tool array business aircraft developed by Tupolev JSC from Moscow, Russia and produced at the Kazan Aircraft Manufacturing Company (KAPO) in Tatarstan. This aircraft is a growth of the Tupolev Tu-204 with greater weight and also longer range.
Tupolev Tu-214 was accredited in December 2000 against Russian AP-25 requirements. The airplane entered service in May 2001 with the Dalavia Khabarovsk Airline, with set up Russian domestic as well as worldwide routes. The aircraft likewise went into solution with the Russian State Transportation organization. These airplanes are available as initial or 2nd class passenger airplane, mix cargo/ traveler airplane and also VIP/ VVIP aircraft.
Tupolev Tu-214 Cabin as well as Freight
The solitary base-class cabin configuration of the Tu-214 offers 210 guest seats in a single 3 × 3 seat aisle plan. The two-class plan gives 164 seats with 16 organisation class seats and 148 economic situation seats.

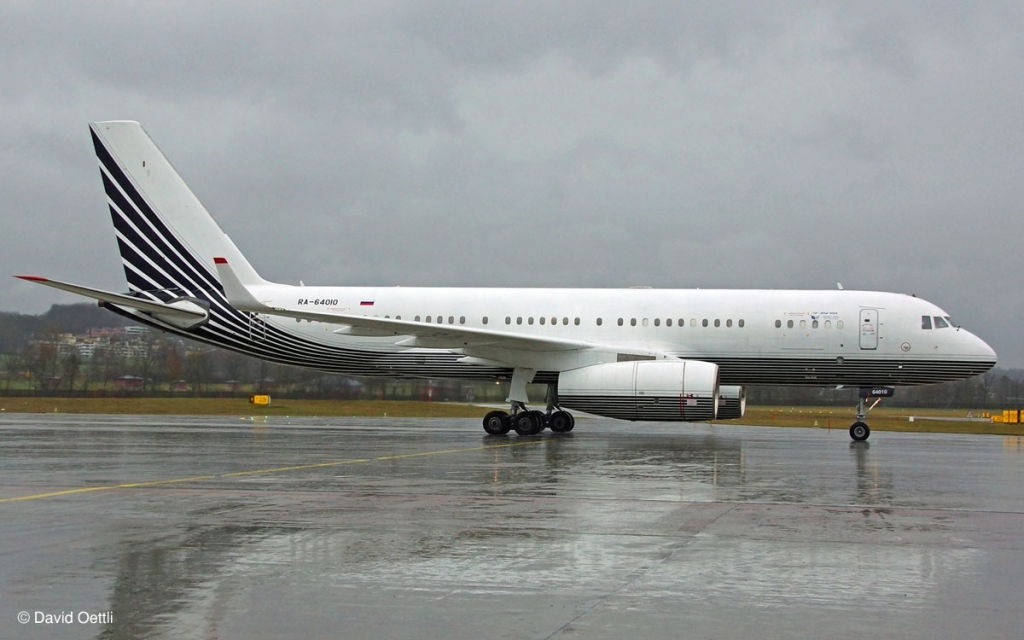

Meanwhile, cabin configurations for VIP airplane are customized to consumer demands. The common layout of the VIP Tu-214 presidential aircraft consists of a lounge, a bed room with en collection washroom as well as a resting location with a workplace location with company class seating. The Tu-214 VIP has a maximum range of 9,200 kilometres.
The Cargo-Passenger Tu-214 aircraft can carry up to 164 passengers or 25.2 t freight in 26 basic LD3-46 containers. The aircraft can be converted by airport terminal ground crew from the passenger version to the combined freight/ traveler variation or to all freight variations in, usually, 4 or 5 hrs. 18 containers can be filled generally traveler cabin and also eight containers loaded in the freight area.
The airplane is geared up with a 3.405 mm x 2.180 mm freight door as well as an internal freight lift for automatic loading and also discharging of conventional containers placed under the freight hold. Cargo containers are sent out by the airport terminal filling system to the back freight compartment. The airplane is furnished with a totally automated container packing system with manual backup.
Tupolev Tu-214 Engine
Tupolev Tu-214 is powered by two Aviadvigatel PS-90A underwing turbofan engines placed on composite cowlings. Each machine has the ability to supply 16,000 kg of fixed drive mixed-up degree and also 17,600 kg with emergency power. The variety of airplane with a full passenger tons is 5,650 km.
This airplane has an essential gas container on the wing, in the freight/ luggage space as well as likewise in the tailfin. A twist box in the tailfin runs as a gas storage tank for automatic center of gravity pruning during flight.
Tupolev Tu-214 Specifications
Tupolev Tu-214 includes many technological developments such as fly-by-wire control systems, glass cockpit, supercritical wings with winglets, and also available with Russian or international avionics. The wings and tail are fairly immune to ice build-up, and consequently the anti-icing system is not furnished. Amongst the airplane presently the Tu-214 is the just one that does not require an anti-icing wing system. Throughout the flight the safety and security examination was verified without an anti-icing system on the bearing surface and also the aircraft obtained Russian as well as European certifications.
The landing mechanism of the Tu-214 is geared up with a hydraulically retractable tricycle-type landing equipment, the nose unit is geared up with twin wheels and also the main system with four wheels. The nosewheel system draws onward as well as the primary system pulls in under the wings and also body. The landing gear is furnished with carbon disc brakes.
Tupolev Tu-214 Cabin as well as Avionics
The Tu-214 cockpit is ergonomically created that can accommodate 3 team participants, specifically pilots, co-pilots, and trip designers. The fourth seat is available for observers or instructors. This airplane has a digital triplex fly-by-wire control with triplex analog back-up.
Digital information and also trip systems offer 2 big color screens as well as navigating info, CRT shows for pilots and also co-pilots. Engine as well as system data are shown on 2 shade CRTs on the facility panel in between pilots.
The Tu-214 airplane is equipped with an electronic and also aviation computer system as well as an incorporated navigation system provides automated navigating and ICAO III-d takeoff as well as touchdown.
Tupolev Tu-214 Rate as well as Orders

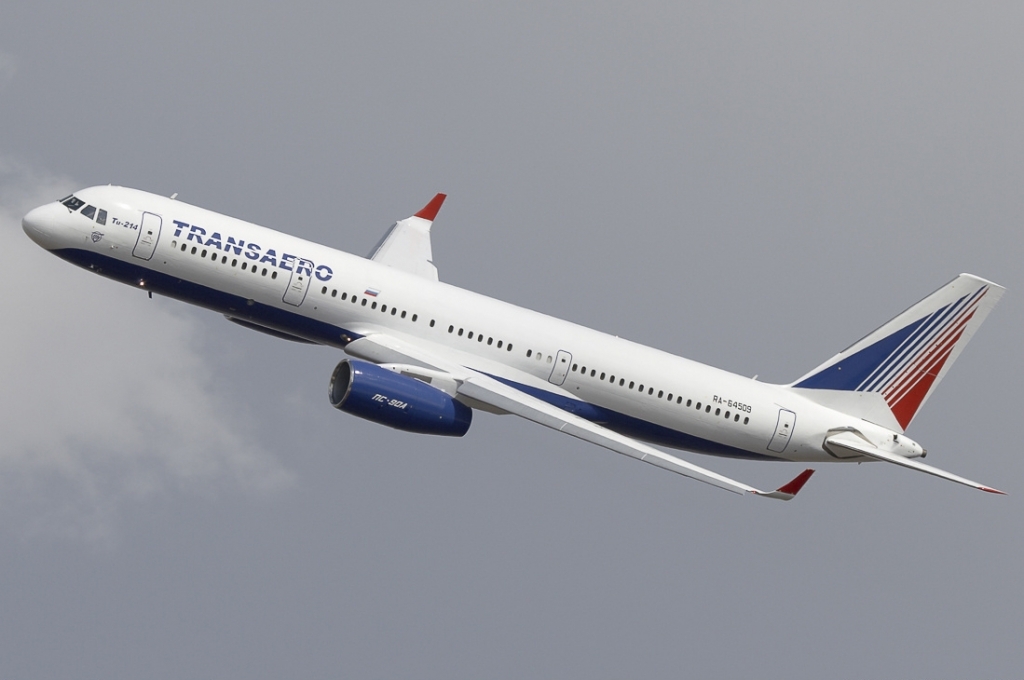

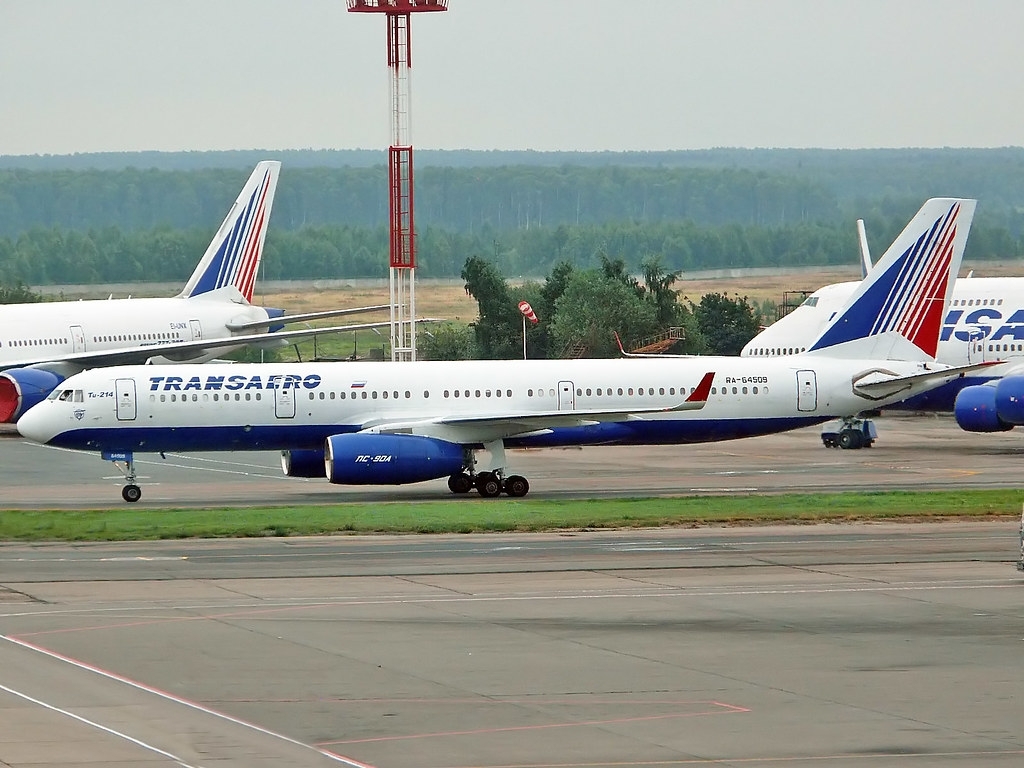

The price of the most up to date Tupolev Tu-214 airplane is around US $ 74 Million. Orders for airplane have actually been made by Transaero, Uralskie Airlines, Atlant-Sojuz, and also Slovak Airlines.
