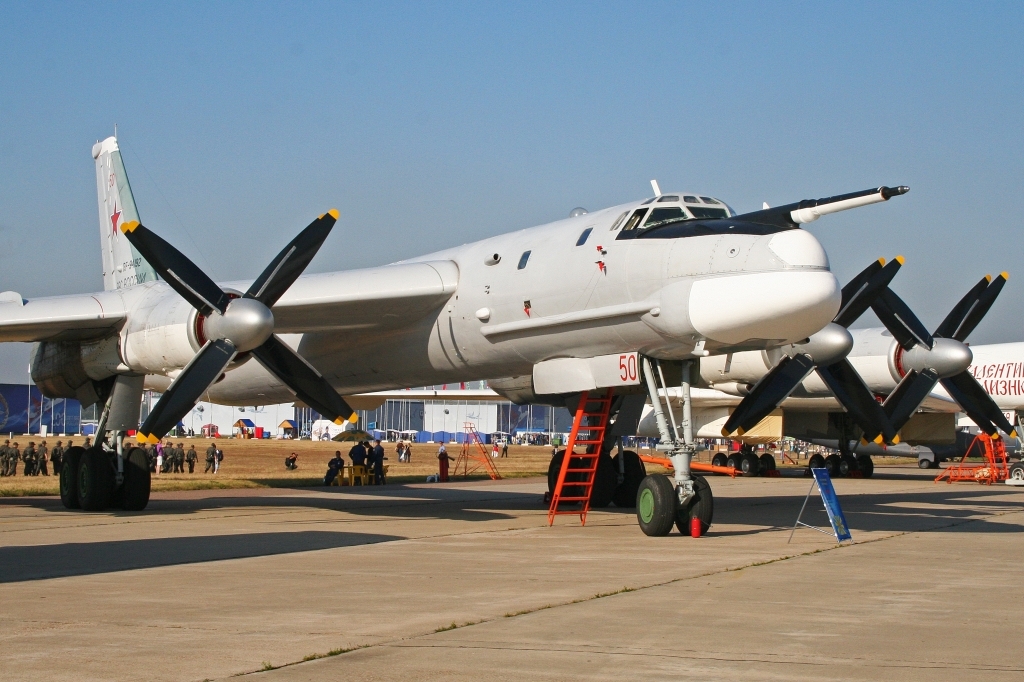

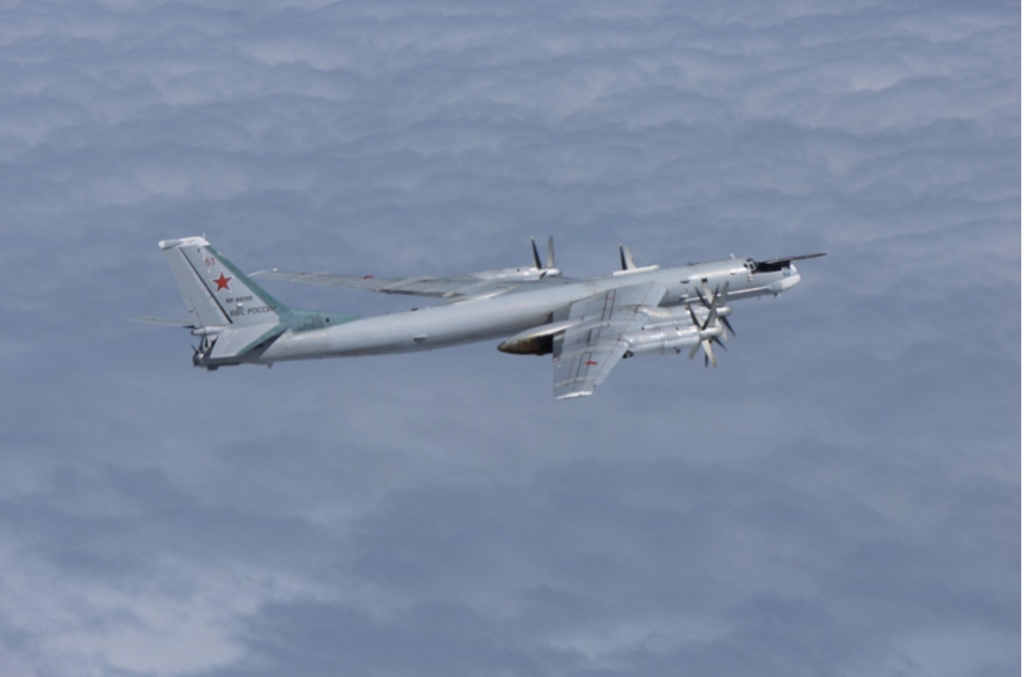

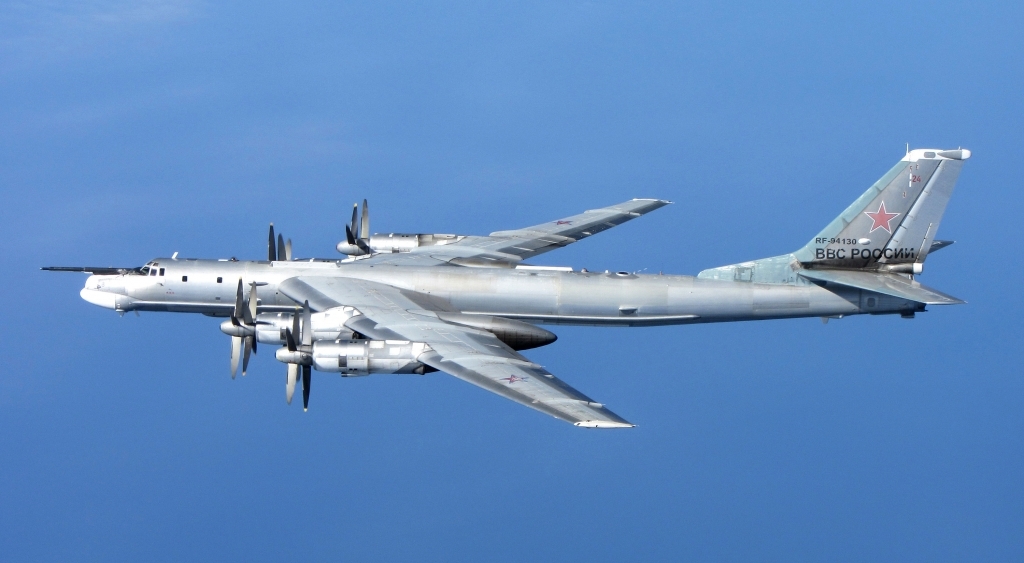

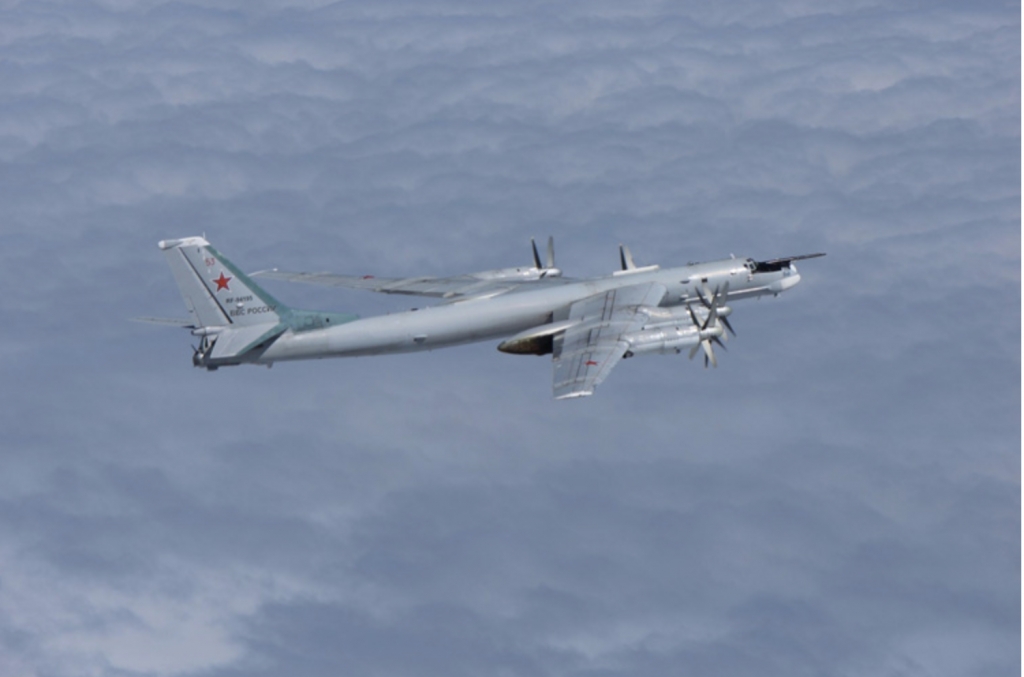

Tupolev Tu-95MS Bombers Cockpit, Specifications, Range, Rate.Tupolev Tu-95MS (NATO reporting name: Bear-H) is a strategic long-range turboprop-powered bomber created by Russian aerospace and defense business JSC Tupolev Style Bureau. The driver is presently in service with the Russian Flying Force. The Tu-95MS aircraft is a modern version of the Tu-95 Bear strategic bomber. It is equipped with a stand-off cruise missile as well as can be made use of in fight goals to beat cruise missiles as well as calculated opponent targets.
The very first flight examination was conducted in May 2011, two Tu-95MS aircraft carried out a 17-hour patrol flight over the Aleutian Islands. This was complied with by a 10-hour air patrol trip in the Pacific Sea in November 2011. 2 Tu-95MS strategic bombers also carried out patrol flights over the Aleutian Islands. Arctic Sea for 20 hours in April 2012. One more patrol flight, which lasted 13 hrs, was executed in the Norwegian Sea in November 2013. The Tu-95MS efficiently introduced 6 high-precision cruise missiles at ground targets throughout a 7-hour tactical flight examination in June 2014.
Tupolev Tu-95MS Engine

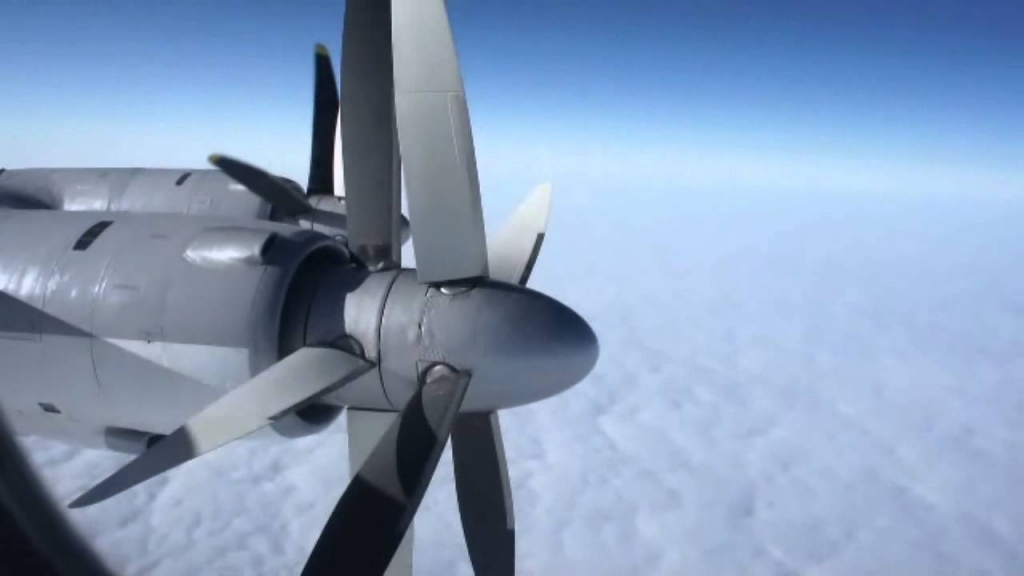

Tupolev Tu-95MS bomber is powered by 4 NK-12MP turboprop engines provided by the Kuznetsov Layout Bureau. Each engine drives an eight-bladed AV-60N counter-rotating propeller. The engine has a takeoff power of 15,000 hp (11,000 kW) as well as a stress ratio of 9.7.
The inner fuel ability of the aircraft is 84 t. Fuel is kept in 4 incorporated tanks in the outer wing, 2 middle wing tanks, as well as in the main body container. An air-to-air refueling probe is mounted on the nose.
The maximum speed of the Tu-95MS is 830 km/ h and also the cruising rate is 550 km/ h. This airplane has a flight range of 10,500 kilometres. This array can be expanded as much as 14,100 km with one trip refueling. Liftoff and landing rolls from the bombing planes were 2,540 m and also 1,700 m respectively, and the service ceiling was 10,500 m.
Tupolev Tu-95MS Specs
The Tu-95MS body is made completely of metal building as well as has a high facet proportion spar wing design. It had the ability to involve the main stationary adversary targets under severe weather both in the night and day. The aerodynamic design of the fuselage allows it to fly at broadband at safe elevations. Two big fairings are mounted on the wing to lower drag. Overall the Tu-95MS has a size of 49.6 m and a height of 13.3 m, as well as is outfitted with a semi-monocoque aircraft.

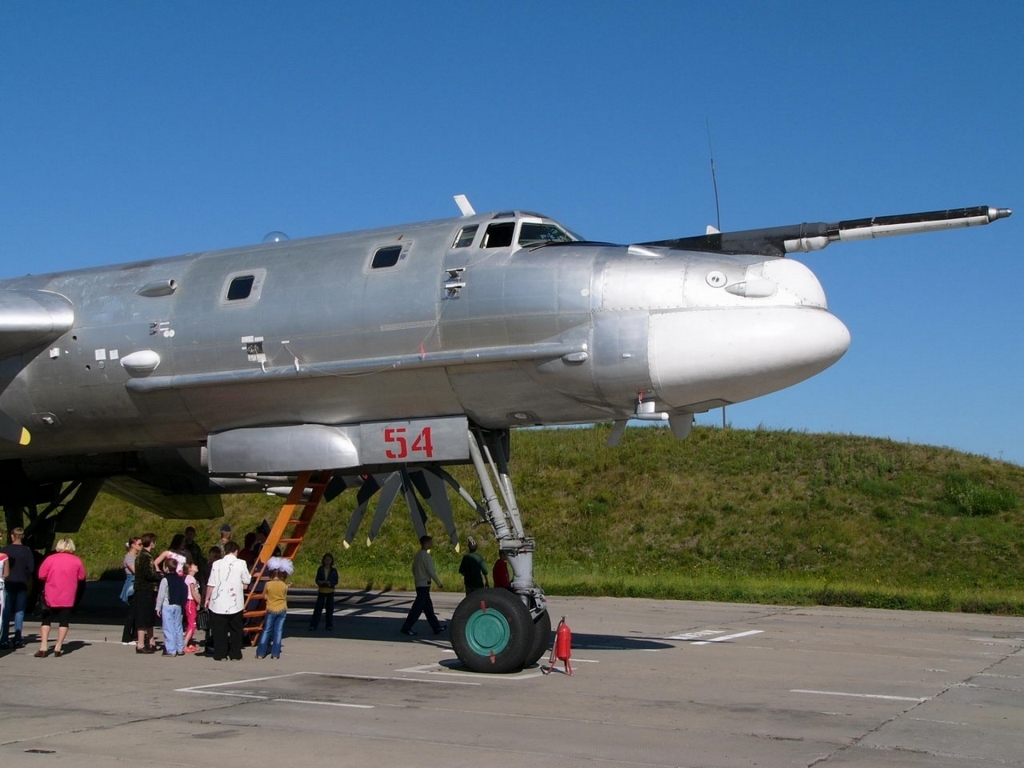

The Tu-95MS touchdown mechanism is equipped with a retracting tricycle type landing equipment consisting of a manageable two-wheel nose device and a four-wheeled main device. The optimum take-off and also landing weights are 185 t and 135 t specifically and also the optimum tons ability is 20,000 kg. The wing is swept back at 35 ° and the wing span is 50.05 m.
Tupolev Tu-95MS Cabin as well as Avionics
The Tupolev Tu-95MS bombing plane aircraft can fit 7 team participants, consisting of a pilot and co-pilot. The Avionik Tu-95MS collection includes the ANS-2009 celestial navigation system, established by Issue Radio-Electronic Technologies (KRET), to figure out aircraft collaborates. The new generation BINS-SP-2M strapdown inertia navigating system, which was likewise created by KRET, establishes the location of items and also offers navigation as well as trip data in the lack of satellite navigating.
The airplane is additionally equipped with Leninetz Obzor-MS clam pipe navigating as well as pulse-doppler radar assaults, and the Mak-UT approach warning system infrared (MAWS). It can be updated with brand-new equipment to raise dependability.
The Tu-95MS bomber is furnished with a self-defense system from directed rockets, the SPS-160 Geran Jammer collection. Electrical defrosting systems are set up to protect the leading covers, propellers, pilots and wing ideas. The onboard digital countermeasures (ECM) likewise includes the Meteor-NM computer-controlled ECM system, APPLICATION chaff/ flare dispenser and also Avtomatika SPO-32/ L150 digital caution receiver.
Tupolev Tu-95MS Defense
The Tu-95MS aircraft is armed with two 23-mm double-barreled Gryazev-Shipunov GSh-23 automatic cannons at the rear for protection against air risks. Each cannon takes a crack at price of 2,400 rounds per min. 6 Kh-15 air launch cruise missiles with a range of 2,500 km are performed in a drum launcher. The airplane can be more customized to lug up to eight Kh-101 air launch cruise missiles or 14 Kh-65 anti-ship missiles.
Tupolev Tu-95MS Cost as well as Orders
The cost of the most up to date Tupolev Tu-95MS Bear-H Bombing Planes is around United States $ 26.28 Million. The first production aircraft was deployed by the 121st Heavy Bombing Plane Program at the Engels Air Base and the 73rd Hefty Bomber Flight Division at the Ukrainka Air Base.
In December 2014, Tupolev handed over two Tu-95MS strategic bombers that were boosted with improved avionics as well as trip efficiency to the Russian Air Force, as part of the nation’s protection orders. Further deliveries of the upgraded Tu-95MS happened in January 2015. The Russian Ministry of Defense acquired 20 contemporary bombing planes by the end of 2016. The airplane is expected to remain to operate with them up until 2040.
