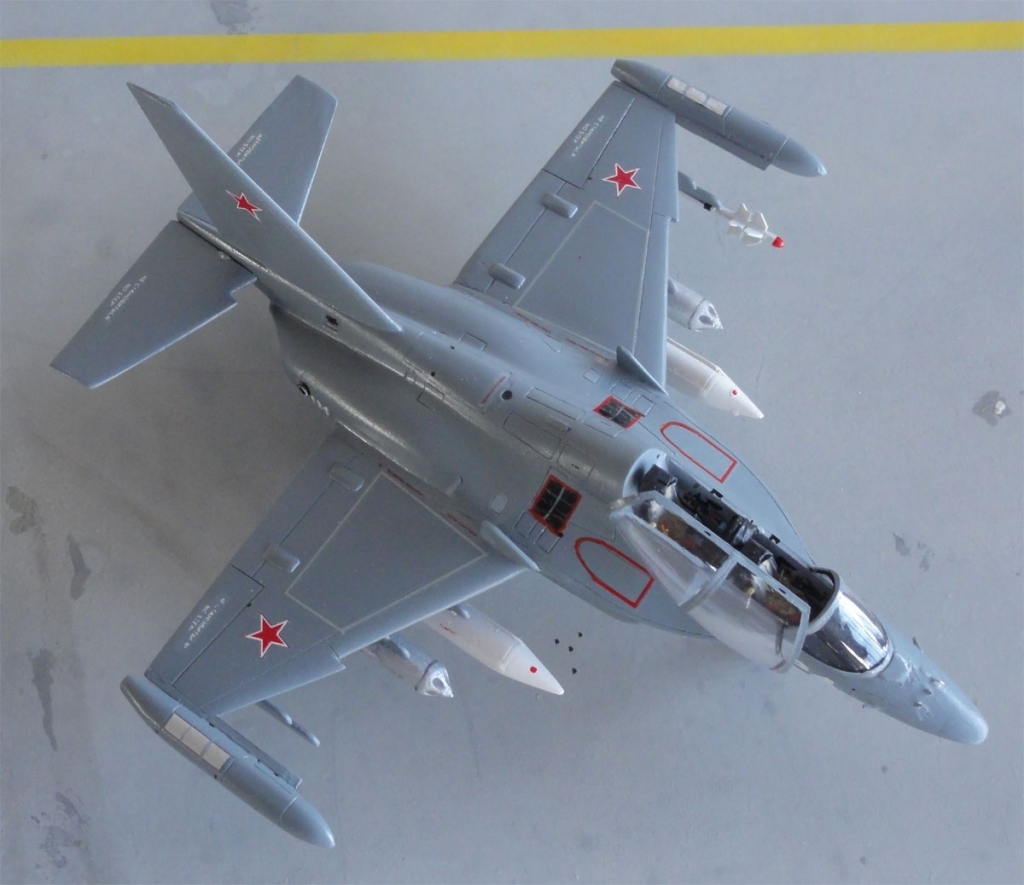

Yakovlev Yak-130 Jet Instructor Radar, Specifications, Cockpit, and also Cost.Yakovlev Yak-130 (NATO reporting name: Mitten) is an innovative two-seat jet instructor and also subsonic light boxer aircraft created and also created by Yakovlev as well as the Irkut business. The Yak-130 can be used as a light assault airplane or as an instructor for various fourth or fifth generation fighter jets.
The joint program for the development of coaches in between Russian Yakovlev and Italian Aermacchi started in 1993. The Yak/ AEM-130D demonstrators flew in 1996. In 1999, the partnership was liquified and the Yakovlev Yak-130 as well as Aermacchi M346 became different programs.
In the second quarter of 2003, the Yak-130 prototype efficiently completed 450 trips, including demonstration trips with high ability to move such as a 42 ° managed attack angle.
Yak-130 completed the first phase of a joint state test in April 2009 which included going into fundamental weaponry. Arrived at the Lipetsk Air Base in February 2010. The aircraft flew straight of sophisticated digital avionics developed by KRET in June 2014.
Yakovlev Yak-130 Engine and Performance

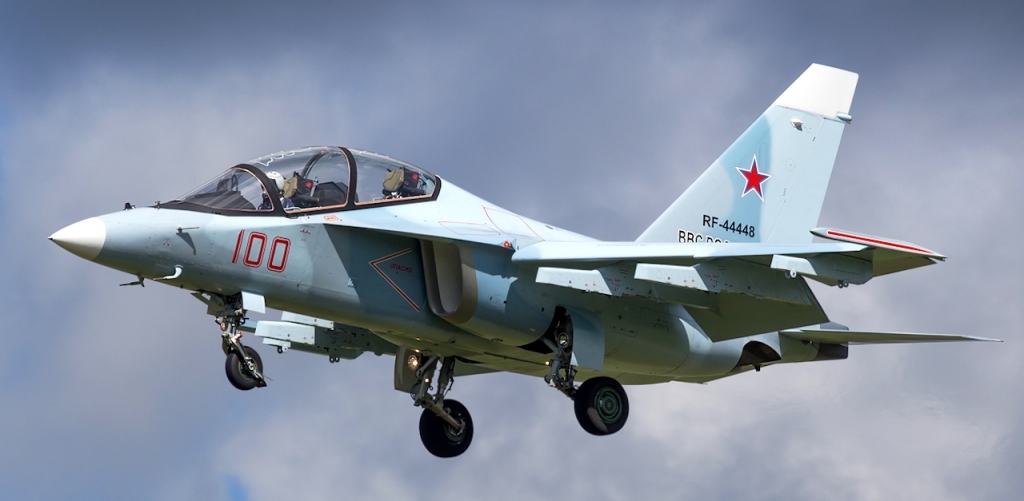

The Yak-130 jet trainer is powered by two AI-222-25 turbofan engines developed under the Russian and Ukrainian programs by Electric motor Sich, the Zaporozh’ e Progression Style Bureau as well as the Moscow Salyut Electric Motor Structure Manufacturing Firm. Each machine has a thrust of 2,500 kg. On the other hand, the Yak-130 export version can be paired with a DV-2SM engine.
The interior fuel container of Yak 130 instructor, consists of 2 wing tanks as well as a main fusel that can bring approximately 2,179 l of gas. With 2 suspended gas storage tanks (450 l each), the maximum overall fuel lots is 3,100 l. The aircraft is furnished with single factor pressure or optional gravity refueling. This training aircraft can be furnished with a refueling probe in trip.
Yakovlev Yak-130 Specifications
The Yak-130 body has a traditional swop-wing layout and empennage monoplane with light-weight carbon fiber alloy building and construction. Kevlar armored guards are installed in the engine, cabin and avionics compartments. The high lift wings which are swept up medium as well as the reduced tail aircraft all move enables the pilot to select a high angle of assault. The airframe is developed for a 30-year job period with 10,000 flight hours or 20,000 touchdowns.
The Yak-130 jet trainer is outfitted with leading edge blades and also a three-position Fowler flap, so it can operate on brief airfields. Fowler flaps are split flaps that return and afterwards down the track to provide a huge boost in lift and also lift height and drag for landing maneuvers.
The Yak 130 trainer can be run from non-paved runways and also little unprepared landing fields due to the fact that the touchdown equipment is designed with a high takeoff. The elaborately set up fly-by-wire control system permits the aircraft to include automated flight control systems, energetic trip safety systems, stability training, and control attributes.
Yakovlev Yak-130 Radar
The Yak-130 jet trainer is geared up with 8 GHz to 12.5 GHz Osa or Oca (Wasp) radar, which is supplied by NIIP Zhukovsky. Radar has the capability to track 8 targets in the air all at once, all at once entailing 4 targets in all angles and at the same time tracking 2 ground targets. The detection variety of the 5m ² cross-section target is 40 kilometres in the back and 85km in the forward direction. The locking array for operation in automated tracking mode is 65 kilometres. The radar has a flexible waveform and also sidelob, has a surface mapping setting that consists of freezing and also increasing the size of the image in the area of interest.
The electronic war suite on the Yak-130 combat instructor includes chaff as well as flare dispensers, radar caution receivers and also energetic jammers.
Yakovlev Yak-130 Cockpit and also Avionics
The cabin of the Yak-130 jet instructor has a two-seat tandem setup. The cool as well as pressurized cabin is furnished with an NPO Zvezda K-36LT3.5 zero-ejection seat. This jet fitness instructor has an all-glass cabin. Both pilot settings are compatible with night vision goggles (NVG) and also are outfitted with 3 multifunctional 6 in x 8 in color fluid crystal screens.
Pilots in the front cockpit can make use of helmet-mounted vision to designate targets. The cockpit is geared up with inner as well as outside MS communication as well as a voice caution system given by AA.S. Popov GZAS joint-stock firm. The pilot has a holistic view through the sore cover. The front pilot has a view to the nose of the aircraft by -16 °, while the rear pilot has a view of -6 °.
The Yak-130 avionics collection is completely electronic integrated with Avionica’s fly-by-wire flight control system which works to adjust security and also control attributes as well as flight safety and security systems to replicate a variety of fighter airplane such as MiG-29, Su-27, Su-30, F- 15, F-16, F-18, Mirage 2000, Rafale, Typhoon and also future competitors like the F-35.
The pilot chose the software program version of the simulation aircraft control system on the Yak-130 on-board computer. Pilots can choose the model throughout the trip. This system can be flexible to permit cadet pilots to get piloting skills easily. The jet instructor is outfitted with an avionics open design collection including two computer systems and also a three-channel details exchange multiplexer. The navigating suite consists of a laser gyroscope as well as GLONASS/ NAVSTAR global positioning.
Yakovlev Yak-130 Weapons

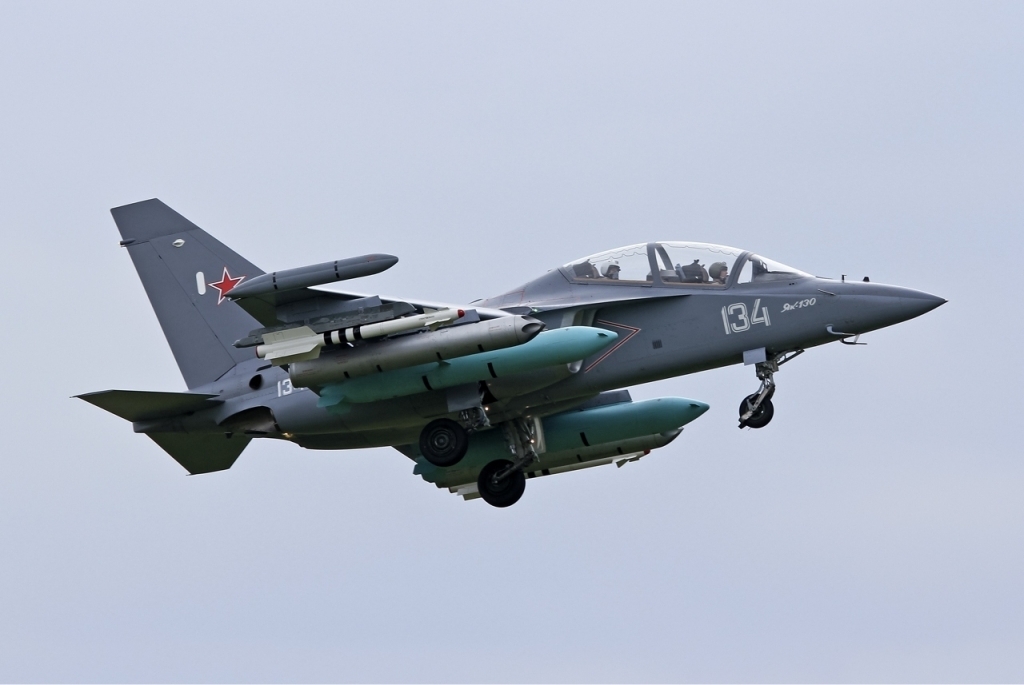

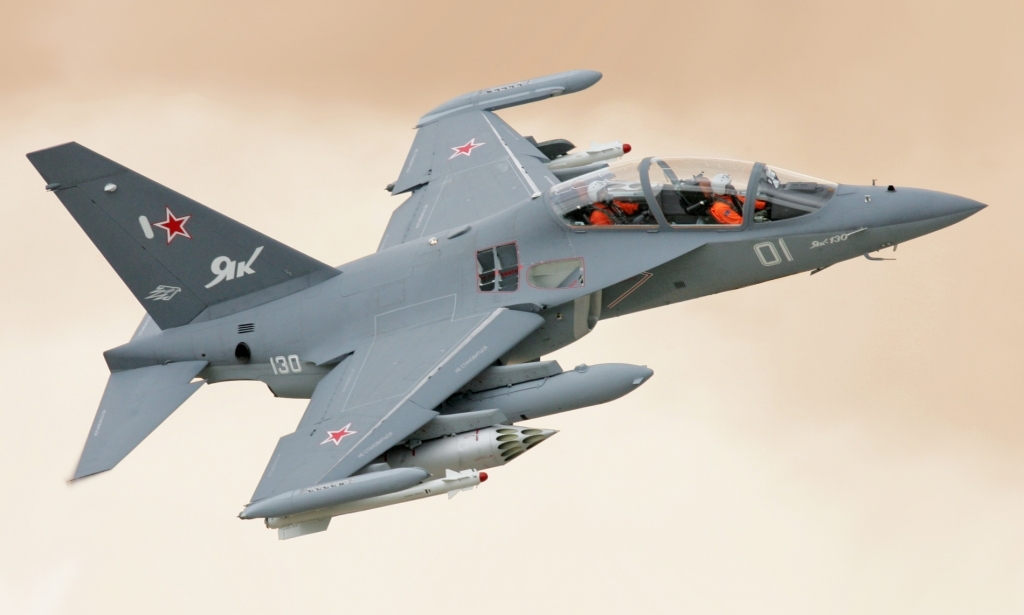

The Yak-130 can imitate the methods of numerous existing boxer aircrafts. The airplane can carry weapons, put on hold fuel containers, security cases as well as numerous electronic battle pods including radar jammers as well as infrared countermeasures. There is one size of the body line and also the variety of wing hooks for arms suspension has actually been raised to 8 with 6 underwings as well as two wing pointers, raising the weight of fight tons to 3,000 kg.
The open style suite installed on the Yak-130 allows a variety of hefty tools systems, Vikhr laser assisted projectiles, R-73 infrared guided air-to-air projectiles (as NATO 11-Archer), Kh-25 ML (as NAT-10 AS- 10 Karen) air-to-surface laser, AIM-9L Sidewinder, Magic 2 and also AGM-65 Maverick rockets. Platan’s electro-optical guide case is placed under the fuselage for the positioning of KAB-500Kr guided bombs.
This boxer training aircraft is geared up with a 30 mm GSh-301 cannon or a GSh-23 cannon mounted under the body. It can likewise make use of B-8M and B-18 missiles that are not aimed, bombs 250 kg as well as 50 kg and collection bombs.
Yakovlev Yak-130 Cost as well as Orders
The price of the most recent Yakovlev Yak-130 advanced jet fitness instructor is United States $ 46 Million. In March 2006, it was announced that Algeria had ordered 16 Yak-130 instructors. Shipments were finished in 2011.
In December 2011, the Russian Ministry of Protection purchased with Irkut for the shipment of 55 Yak-130 combat instructors in 2012. The first set of 6 aircraft was sent to the Russian Flying Force in October 2012. The second set of three Yak -130 was provided in November 2012. A total amount of 15 airplane were sent to the Russian Flying Force in 2012.
Bangladesh ordered 16 Yak-130s in January 2014. The Russian Ministry of Protection placed orders for the supply of 12 extra aircraft in February 2014. A total of 36 Yak-130 airplane are expected to be sent to Syria in 2016. Russia also plans to export aircraft to the Azerbaijan armed force.
