Pilatus PC-9M Interior, Cabin Specifications, and also Cost.The Pilatus PC-9M is a single turboprop engine advanced fitness instructor aircraft made by Pilatus Airplane of Switzerland. This aircraft was produced primarily to satisfy the requirements of the Swiss Air Force (SAF), Australian Air Force (RAAF), Saudi Royal Air Force (RSAF) as well as Royal Thai Air Force (RTAF).
Development of PC-9 started in 1982 to change the aging PC-7 fleet. The initial flight PC-9 was finished on May 7, 1984. The aircraft was first accredited in September 1985 and started operating in 2004. The most recent version being developed from the PC-9M is Pilatus PC-9Mk2.
Pilatus PC-9M Cabin as well as Avionics
Pilatus PC-9M features a dual glass cockpit with tandem seating arrangements for pilots as well as co-pilots. The cabin is equipped with a glass cover to increase visibility. The Pilatus PC-9M cockpit is improved by the primary trip display (PFD) and also multi-function display (MFD), both of which provide clear exposure and also display screen flight details. Engine surveillance, airplane configuration, air pressure, and also environmental control are offered in the cockpit.
The Pilatus PC-9M avionics collection consists of Visual Trip Rules (VFR) and also Tool Flight Policy (IFR) for navigating, interaction and also recognition. Avionics collections set up in the cockpit include a digital flight instrumentation system (EFIS), Direct Show (HUD), On-board Oxygen Manufacturing System (OBOGS) as well as anti-G systems.
Pilatus PC-9M Engine as well as Efficiency
The Pilatus PC-9M is powered by a Pratt & Whitney Canada PT6A-62 solitary turboprop engine. The engine generates an outcome power of 857 kW to drive a four-bladed Hartzell light weight aluminum prop made from at a continuous speed of 2,000 rpm. The engine has an epicyclic speed decrease transmission to decrease prop noise by enhancing output speed. This engine is additionally furnished with a one-stage axial as well as centrifugal multi-stage compressor, backflow burner as well as one-stage compressor generator. The length as well as size of the engine are 1.79 m and also 0.48 m, respectively.
Pilatus PC-9M airplane can fly with a maximum speed of 593 km/ h and also a cruising speed of 552 km/ h. The booth rate is 143 kilometres/ h and can increase to 19.7 m/ s. The airplane has a series of 1,593 kilometres as well as a solution ceiling of 11,580 m. The optimum endurance of the aircraft is 4 hrs thirty minutes.
Pilatus PC-9M Specs

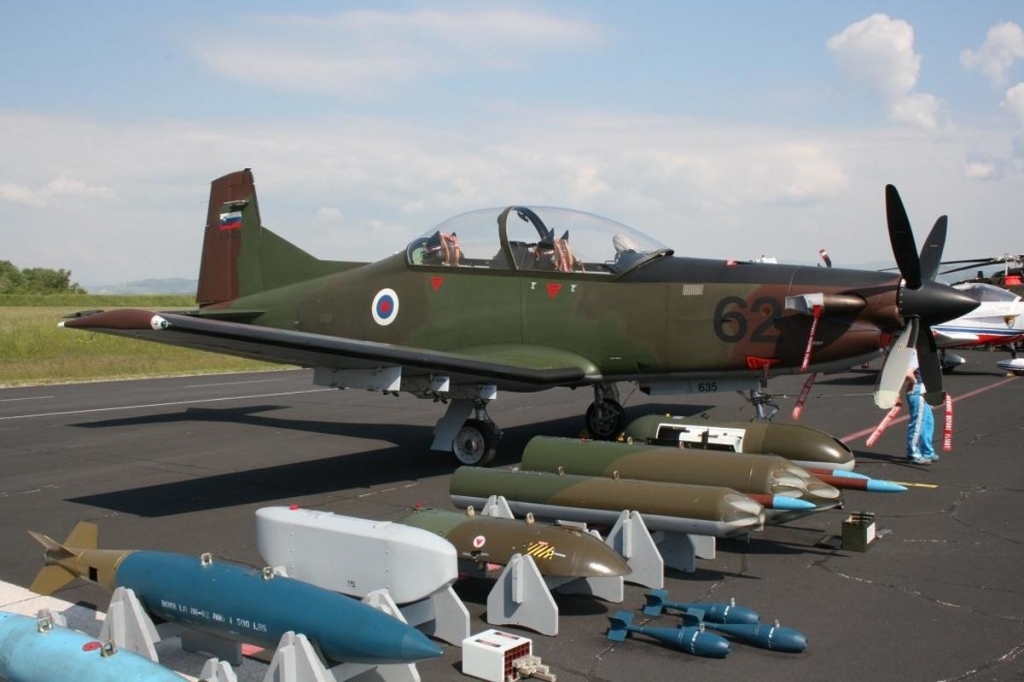

Pilatus PC-9M is a sophisticated version of PC-9. This airplane has a vast dorsal fin to boost longitudinal stability, stall strips, brand-new engines, as well as propeller control. At the bottom of the wing the aircraft is outfitted with 6 tough factors (3 on each wing). These tough points can be placed with two Rocket Podets, FN LAU 7 folding air fin rockets and also two FN heavy gatling gun (HMG). Each weapon can terminate 250 rounds of ammo.
Dimensions of Pilatus PC-9M consist of length 10.14 m, elevation 3.26 m, and wingspan 10.125 m. The airplane’s empty weight is around 1,781 kg as well as the optimum take-off weight (MTOW) is 3,200 kg. The aircraft is geared up with a retracting tricycle kind landing equipment.
Pilatus PC-9M Rate and Orders
The price of the current Pilatus PC-9M advanced trainer aircraft is around US $ 7 million. In 1997, Croatia authorized an agreement with RAAF to supply 3 used Pilatus PC-9M airplane. Slovenia got nine airplanes in December 1997. Oman purchased 12 planes in January 1999. Ireland purchased 8 planes in January 2003. Bulgaria acquired 12 airplanes in 2004. Mexico was the last customer to obtain 2 aircrafts in September 2006.
